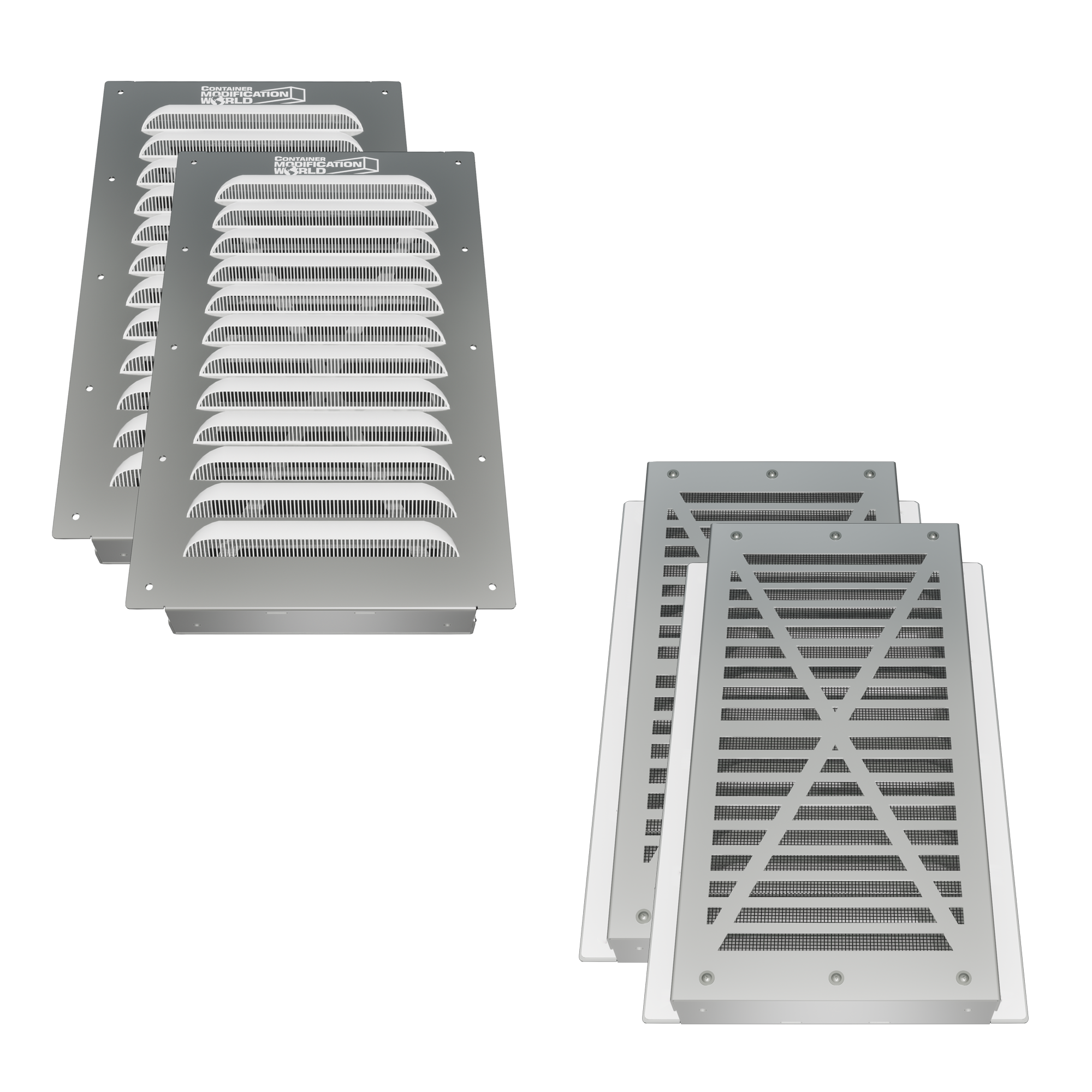

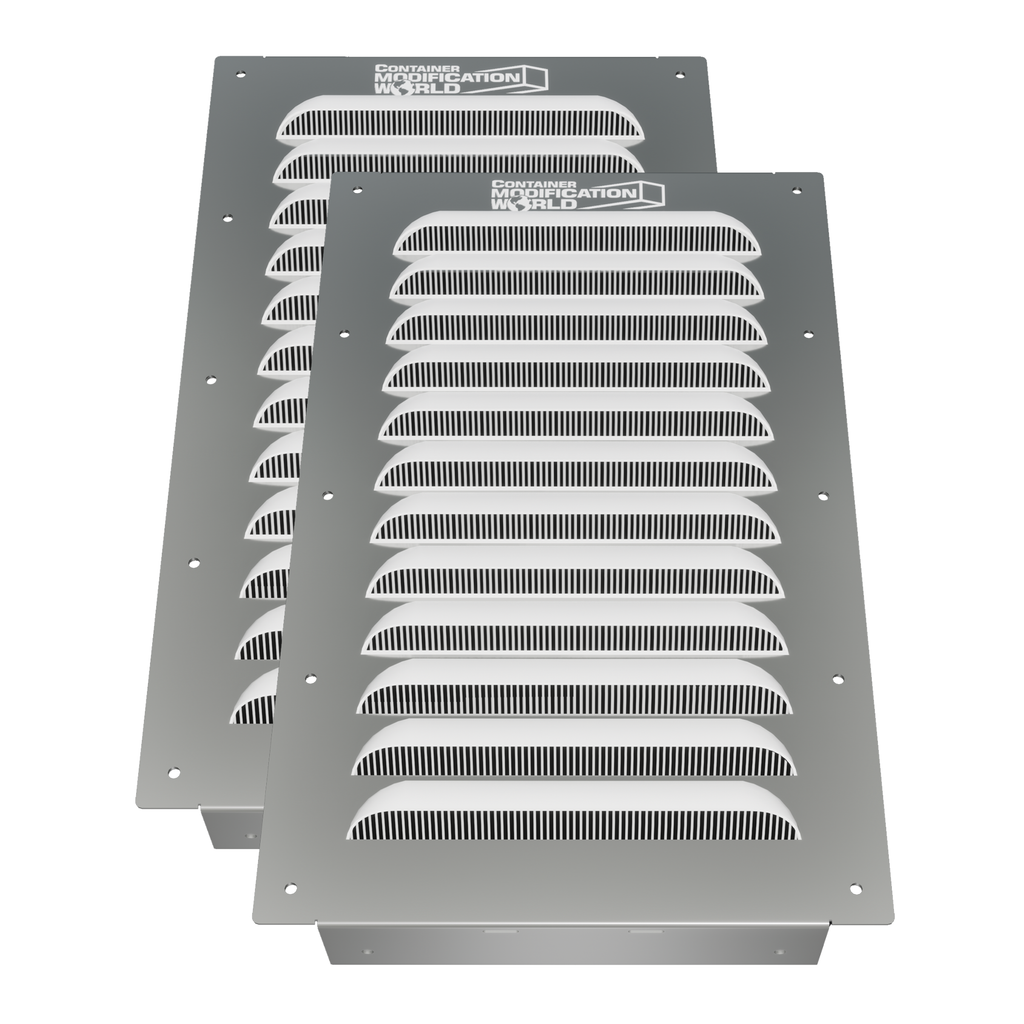

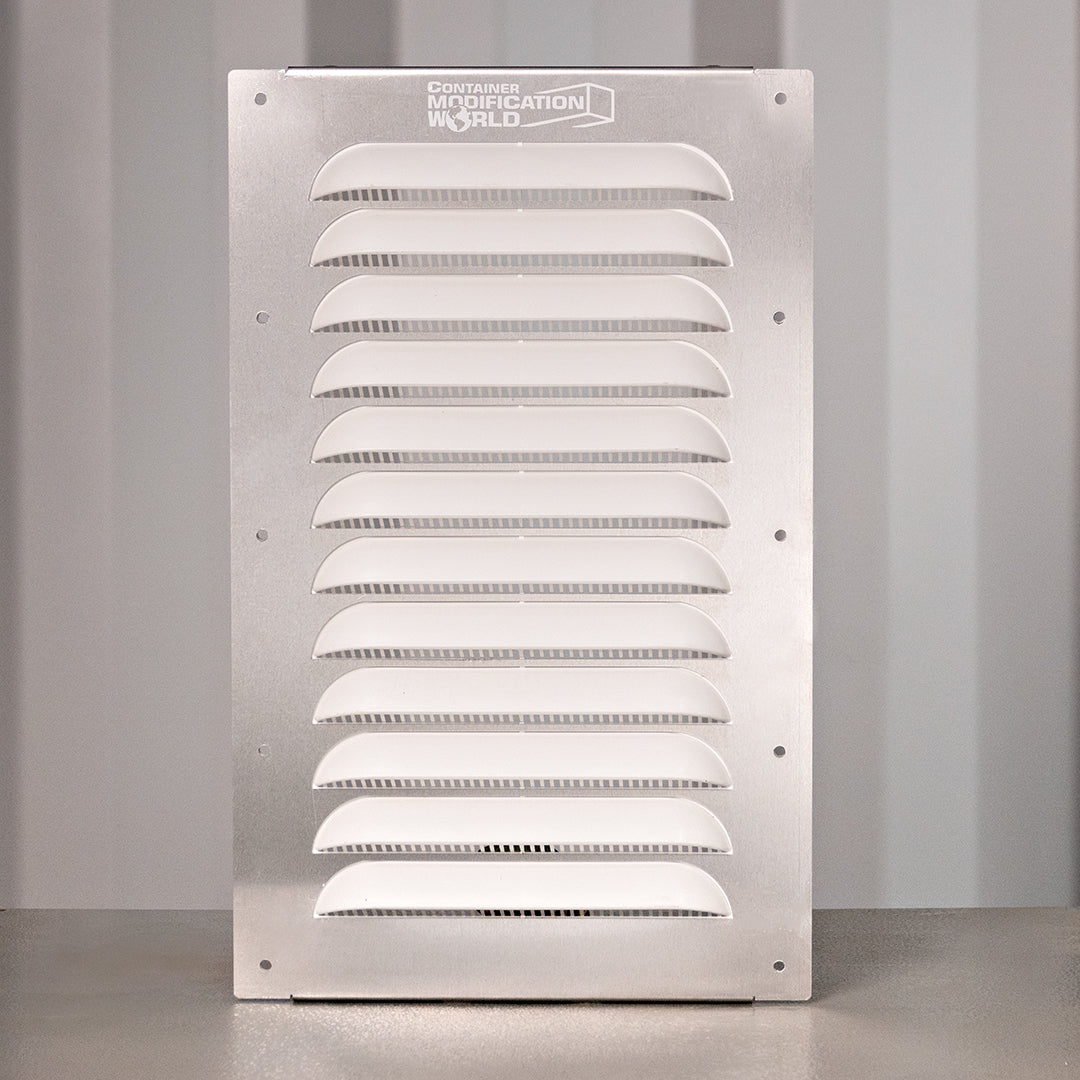

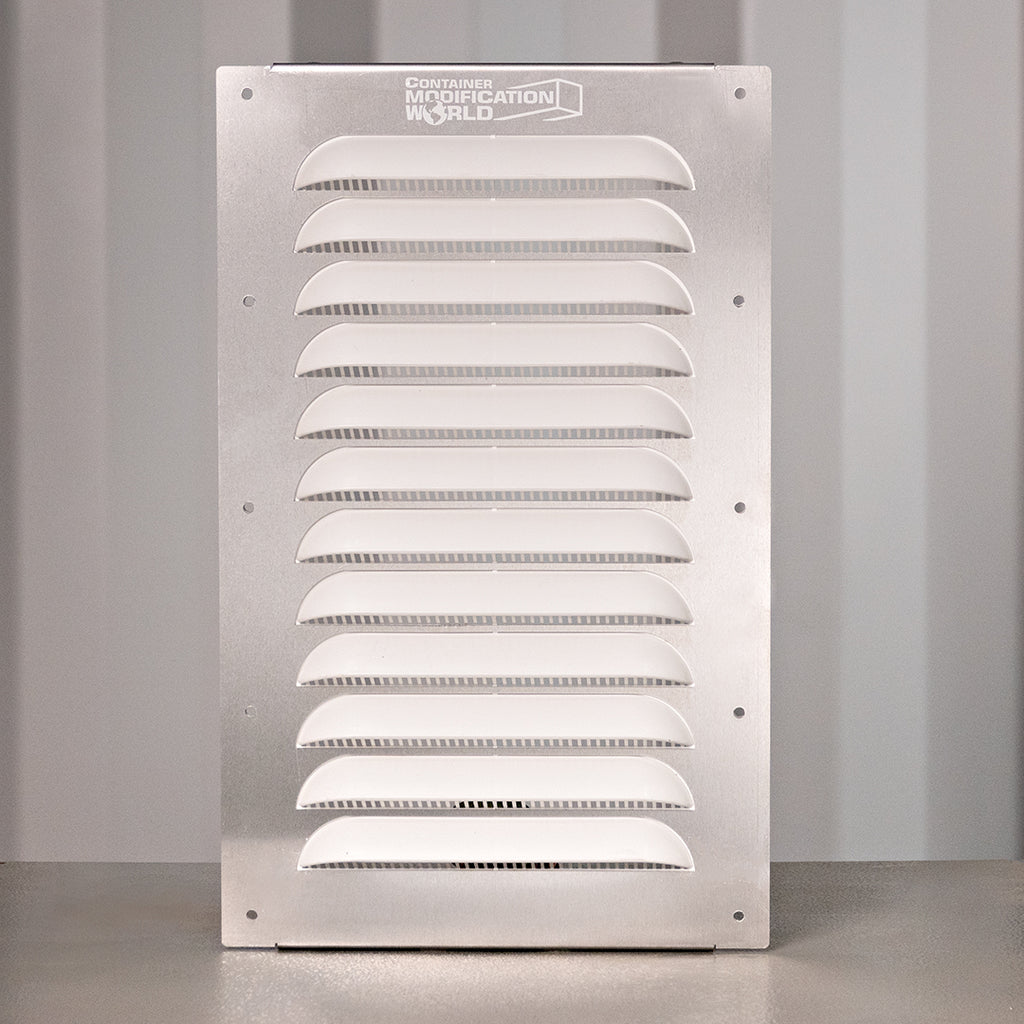

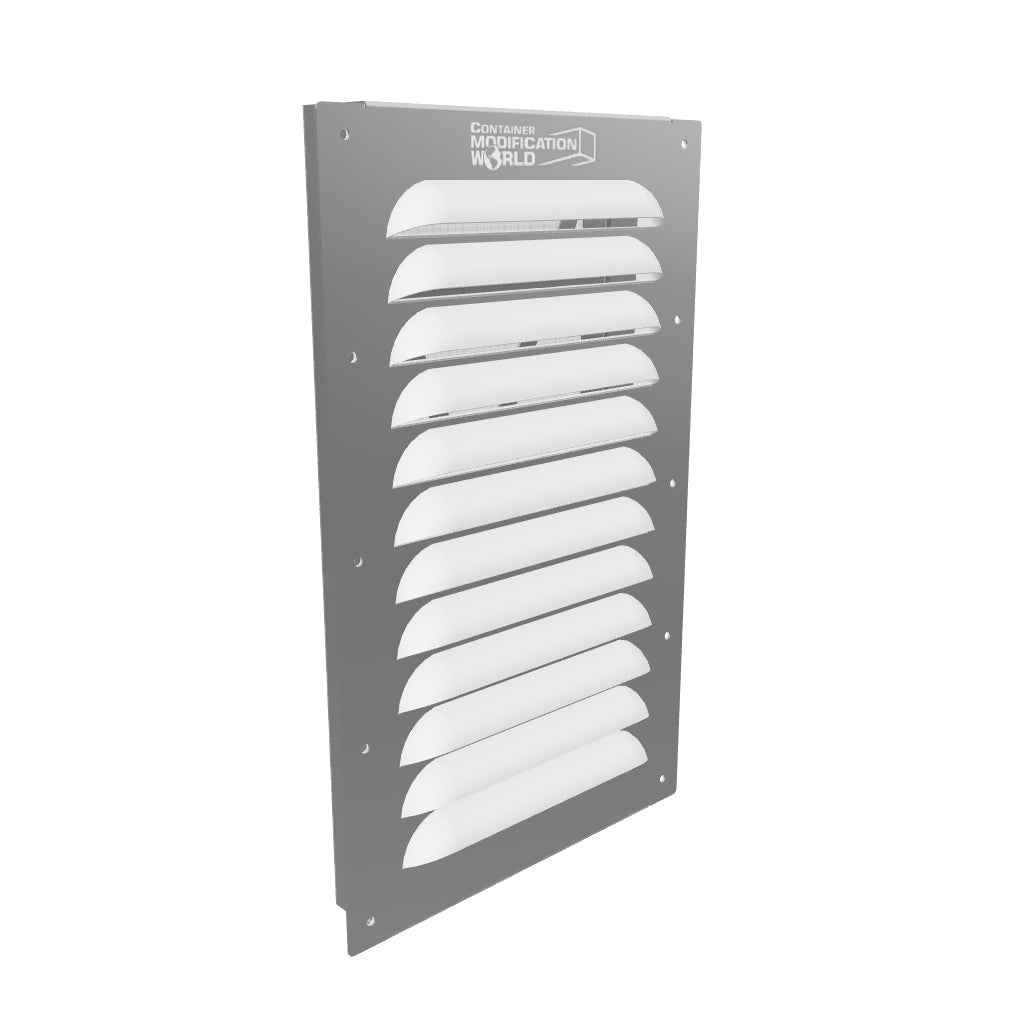

BigAir 60 Louvered Gable Vents


Size: BigAir60 Louvered Gable Vent (2 Pack)
Price:
Sale price€169,95

BigAir Louvered Container Vents are engineered to be installed anywhere on shipping container sidewalls, end walls, or doors - from floor to ceiling.

BigAir Louvered Container Vents (sizes: 30 & 45), come with a marking guide to make cutting a hole as easy as possible! Rivets (Alum/Alum, 3/16", 1/4") and self-tapping screws are also included (we recommend using rivets). BigAir60 Vents do not come with a marking guide.

A minimum of two vents are required per container for temperature & moisture control in temperate climates. Four vents per container are suggested in tropical climates. For HAZMAT ventilation, two vents installed high and two vents installed low is suggested. Customer's responsibility to ensure OSHA compliance when storing hazardous materials.

Eliminate moisture and excess heat with our state-of-the-art computer-modeled design. Made with highly durable Polypropylene and Aluminum, the BigAir will never rust!

The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen.

The above-mentioned variables include, but are not limited to the following:

► Humidity
► Interior temperature
► Exterior temperature
► Wind direction
► Wind speed
► Foundation
► Adequate airflow under the container
► Direct sunlight to roof
► Direct sunlight to walls/doors
► Type of contents stored
► The volume of contents stored inside
► Color of container
► Specifically the roof
► Number of stock vents in the container


Features:

  • Engineered to be installed anywhere on shipping container side walls, end walls or doors from floor to ceiling. Fits: 8', 9', 10', 20', 40', 45', 48', 53' corrugated and smooth wall shipping containers, van trailers & all wood construction buildings
  • Utilizes Duraflo 680812 CSA Approved Gable Vent
  • High UV Resistant Polypropylene and Laser Cut Aluminum Frame will never rust!
  • 30, 45, or 60 Sq. In. Net Free Area, depending on the size of vent you choose
  • Big Air 30 = 9” x 10 ½” Rough Opening
  • Big Air 45 = 9" x 14" Rough Opening

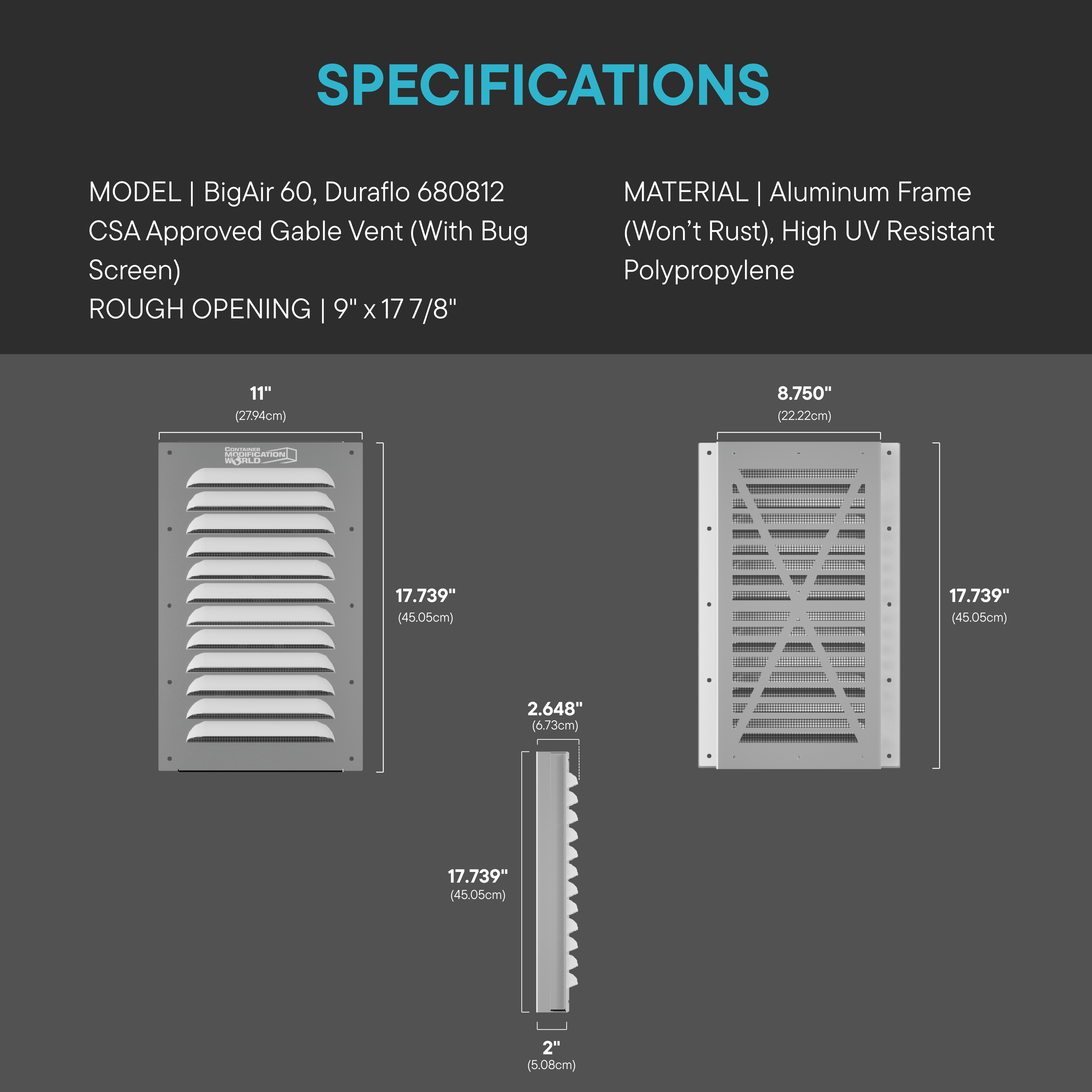

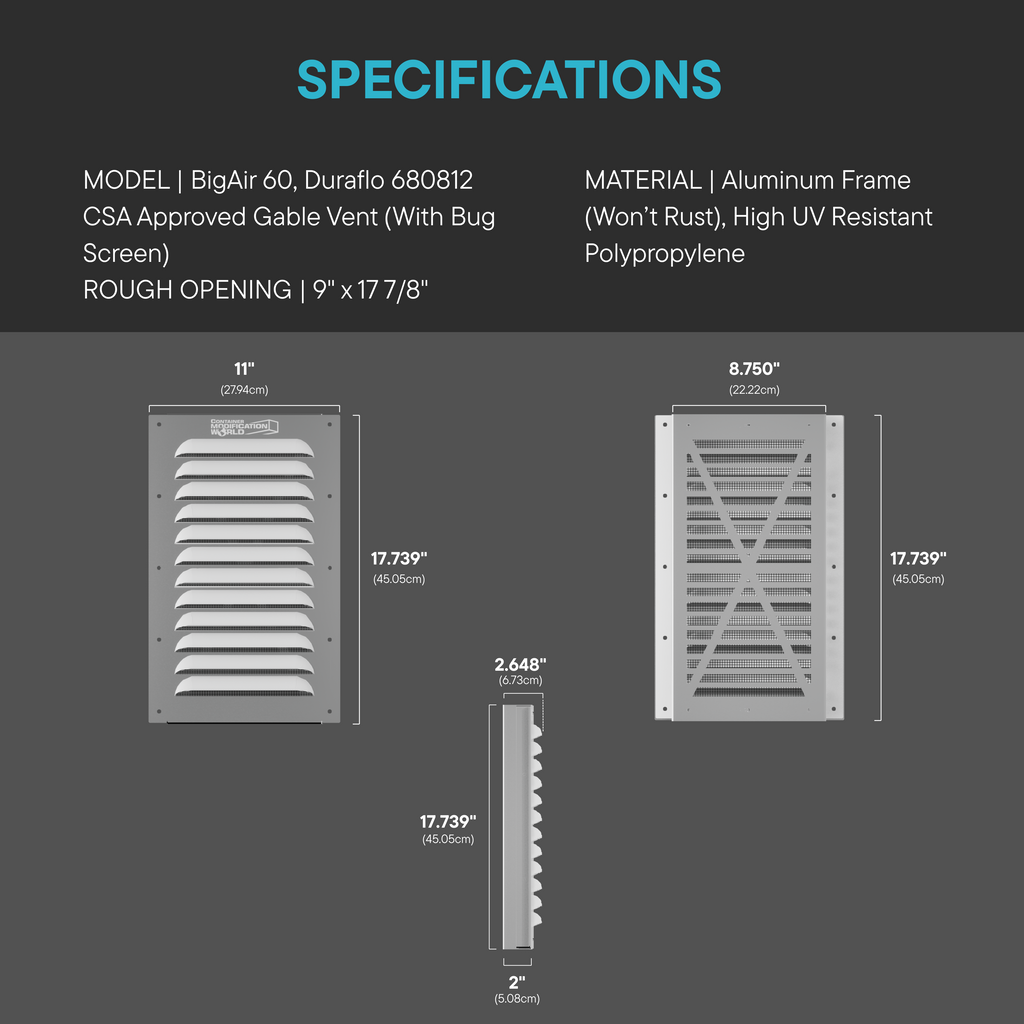

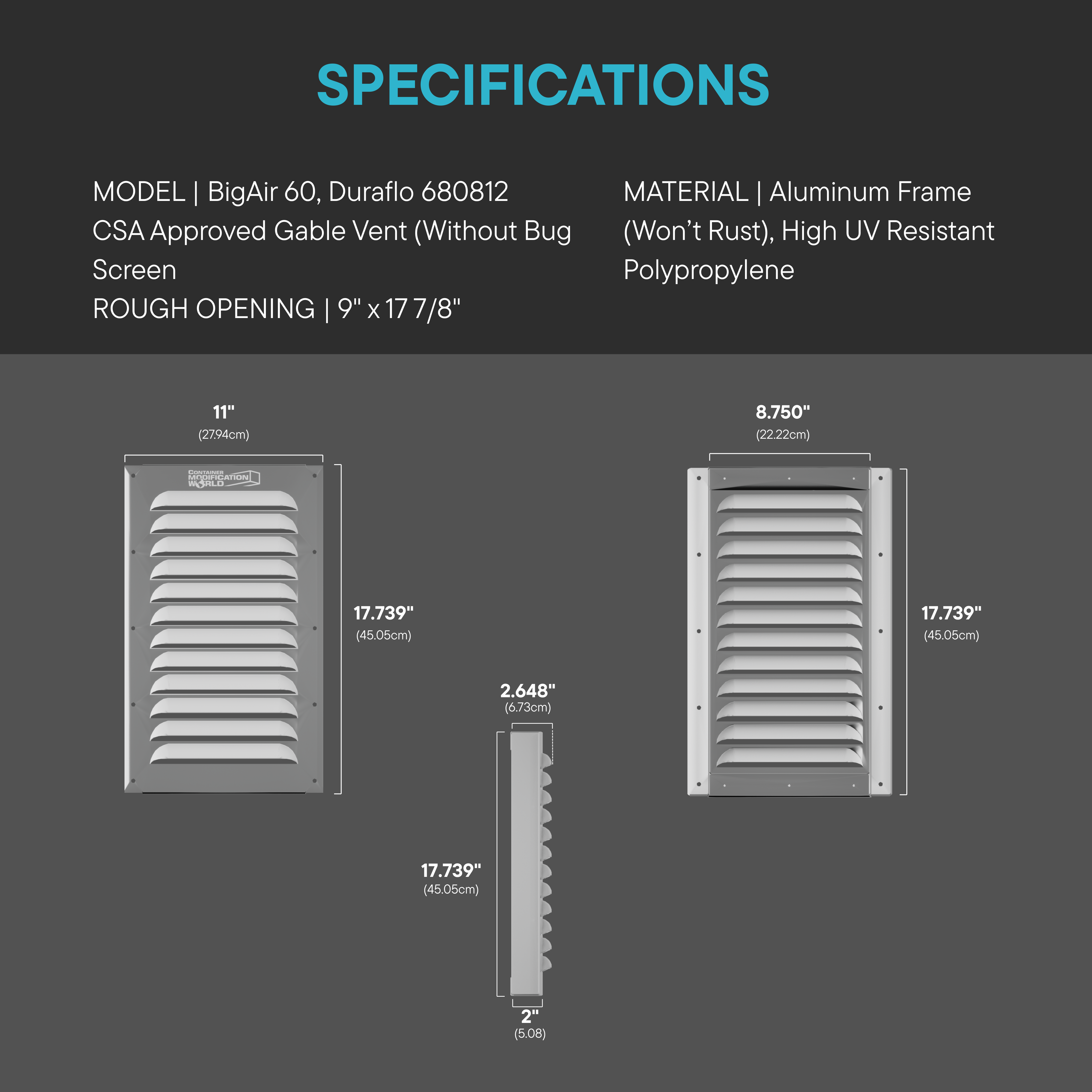

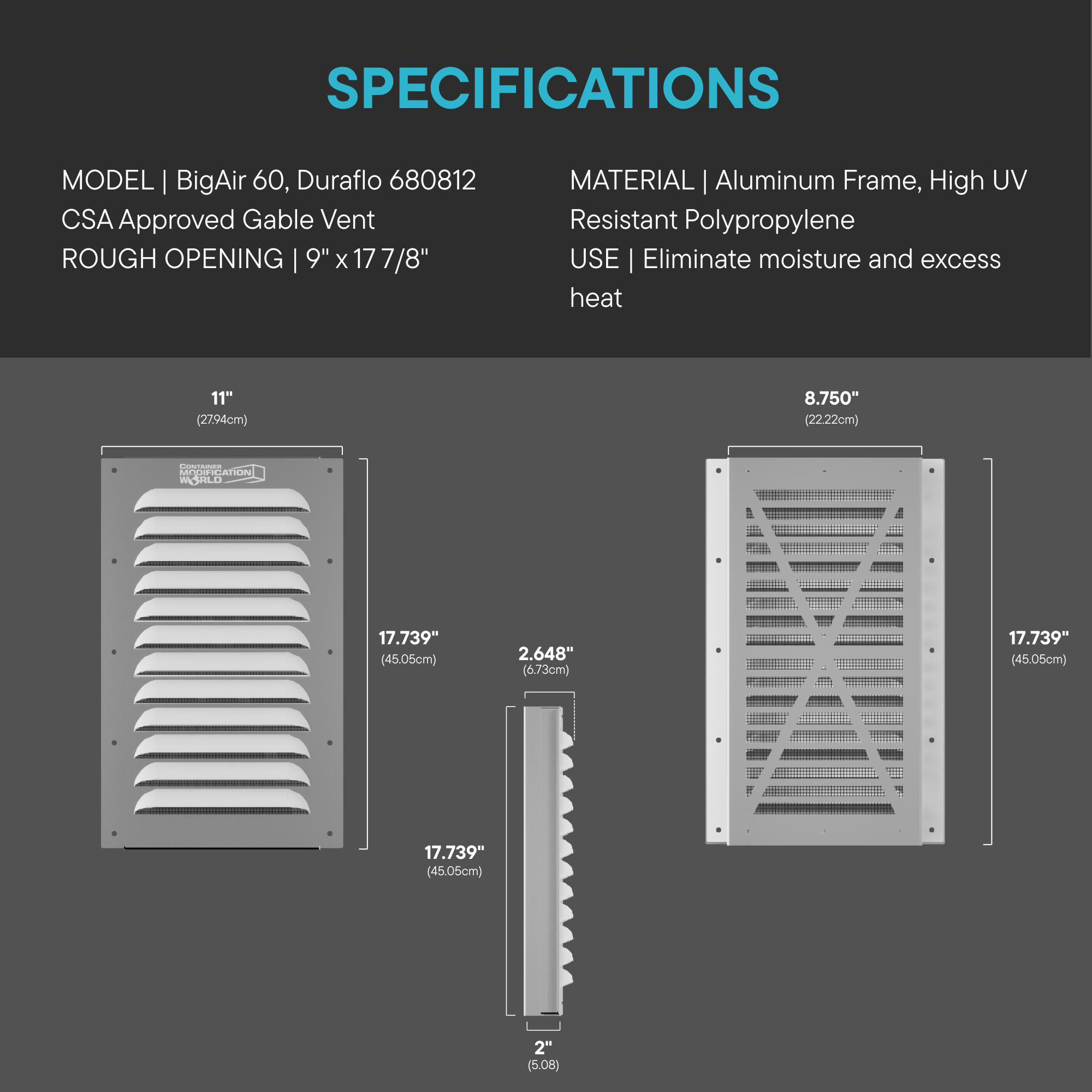

  • Big Air 60 = 9” x 17 ⅞” Rough Opening
  • Disclaimer: Ensure Your Container Complies With OSHA When Storing Hazardous Materials
  • Includes Steel/Steel, 3/16", 1/2" Rivets and No.10, 7/8"Hex Head Self Tapping Screws





BigAir30 Installation Instructions (Download PDF)
BigAir45 Installation Instructions (Download PDF)
BigAir60 Installation Instructions (Download PDF)

Description

BigAir Louvered Container Vents are engineered to be installed anywhere on shipping container sidewalls, end walls, or doors - from floor to ceiling.

BigAir Louvered Container Vents (sizes: 30 & 45), come with a marking guide to make cutting a hole as easy as possible! Rivets (Alum/Alum, 3/16", 1/4") and self-tapping screws are also included (we recommend using rivets). BigAir60 Vents do not come with a marking guide.

A minimum of two vents are required per container for temperature & moisture control in temperate climates. Four vents per container are suggested in tropical climates. For HAZMAT ventilation, two vents installed high and two vents installed low is suggested. Customer's responsibility to ensure OSHA compliance when storing hazardous materials.

Eliminate moisture and excess heat with our state-of-the-art computer-modeled design. Made with highly durable Polypropylene and Aluminum, the BigAir will never rust!

The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen.

The above-mentioned variables include, but are not limited to the following:

► Humidity
► Interior temperature
► Exterior temperature
► Wind direction
► Wind speed
► Foundation
► Adequate airflow under the container
► Direct sunlight to roof
► Direct sunlight to walls/doors
► Type of contents stored
► The volume of contents stored inside
► Color of container
► Specifically the roof
► Number of stock vents in the container


Features:

  • Engineered to be installed anywhere on shipping container side walls, end walls or doors from floor to ceiling. Fits: 8', 9', 10', 20', 40', 45', 48', 53' corrugated and smooth wall shipping containers, van trailers & all wood construction buildings
  • Utilizes Duraflo 680812 CSA Approved Gable Vent
  • High UV Resistant Polypropylene and Laser Cut Aluminum Frame will never rust!
  • 30, 45, or 60 Sq. In. Net Free Area, depending on the size of vent you choose
  • Big Air 30 = 9” x 10 ½” Rough Opening
  • Big Air 45 = 9" x 14" Rough Opening
  • Big Air 60 = 9” x 17 ⅞” Rough Opening
  • Disclaimer: Ensure Your Container Complies With OSHA When Storing Hazardous Materials
  • Includes Steel/Steel, 3/16", 1/2" Rivets and No.10, 7/8"Hex Head Self Tapping Screws





Installation Instructions

BigAir30 Installation Instructions (Download PDF)
BigAir45 Installation Instructions (Download PDF)
BigAir60 Installation Instructions (Download PDF)

You may also like

Recently viewed

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
M.Y.
Bought Two More

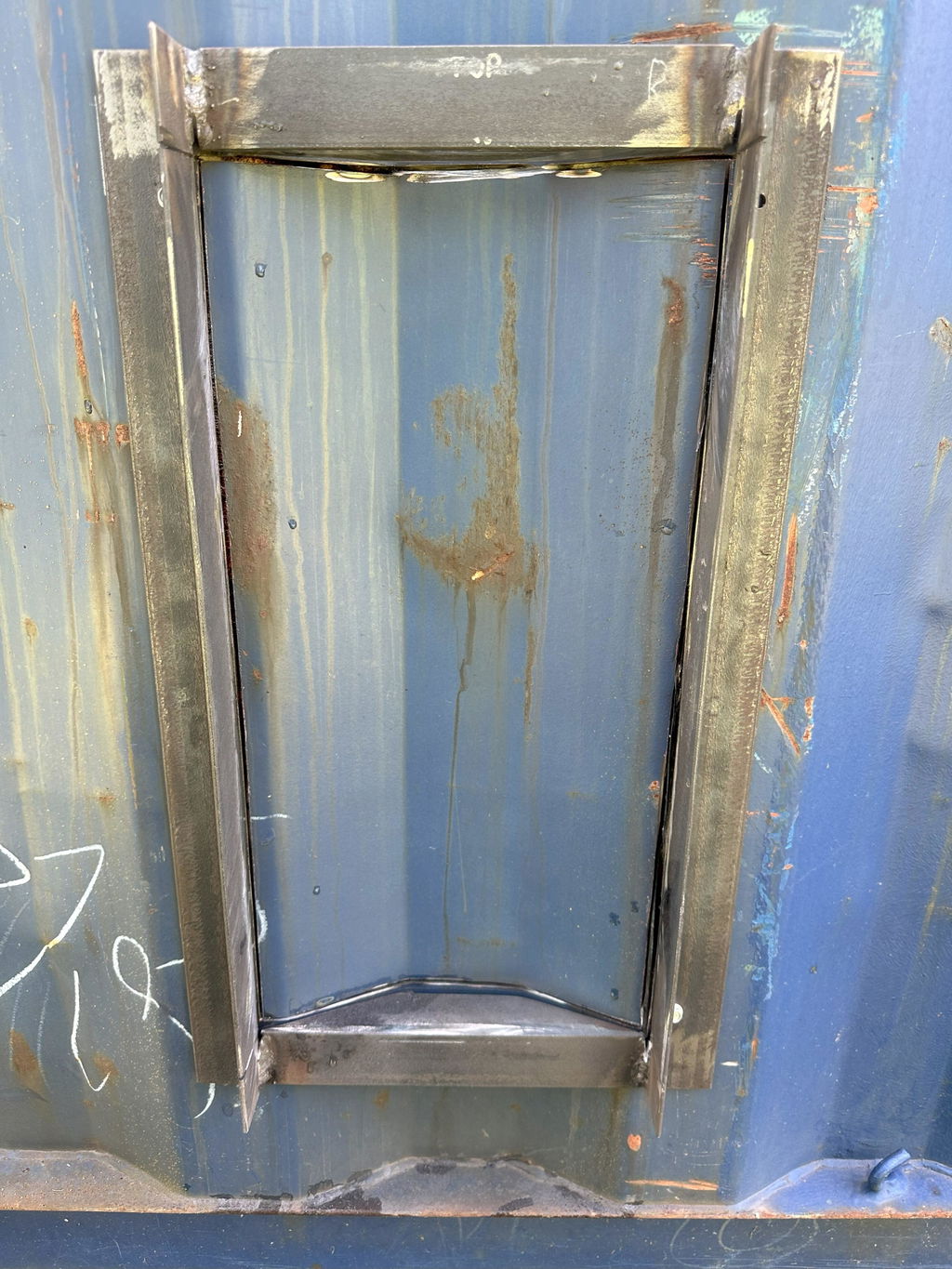

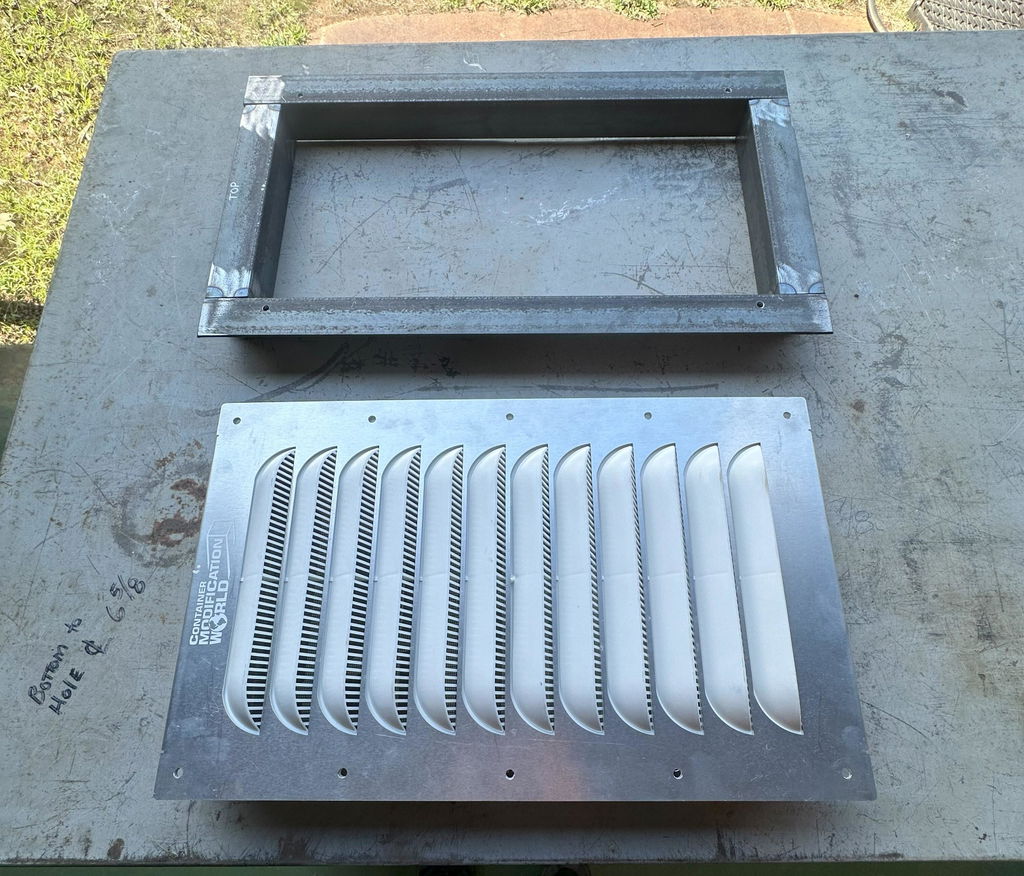

I'm not that skilled cutting long vertical lines with a cutoff wheel, so I made me a simple guide out of 1 1/2" light angle. I used the Big Air 60 vent as a pattern, welded the pieces together and drilled holes in each corner. I then went and purchased the corded 6" angle grinder from HFT (on sale, of course), since that grinder is perfect for this type of work. It seems like a 4 1/2" is too slow, and my 9" grinder is way too heavy... although I did try it. I hold the template in place and drill the first hole in the upper right corner and attach with the supplied screws. Then I drill a couple more holes and put more screws in to secure it. I then use it to keep my wheel straight and grind away. It worked out really great, since I have 4 Big Air 60 vents to install; one in each 40HC container. I then remove any burrs with a flap wheel on a 4 1/2" grinder. The holes in the Big Air 60 are perfect in that for all 4 vents I installed, the holes were always exactly the same and the pattern worked every time.

M
Mark Yoder

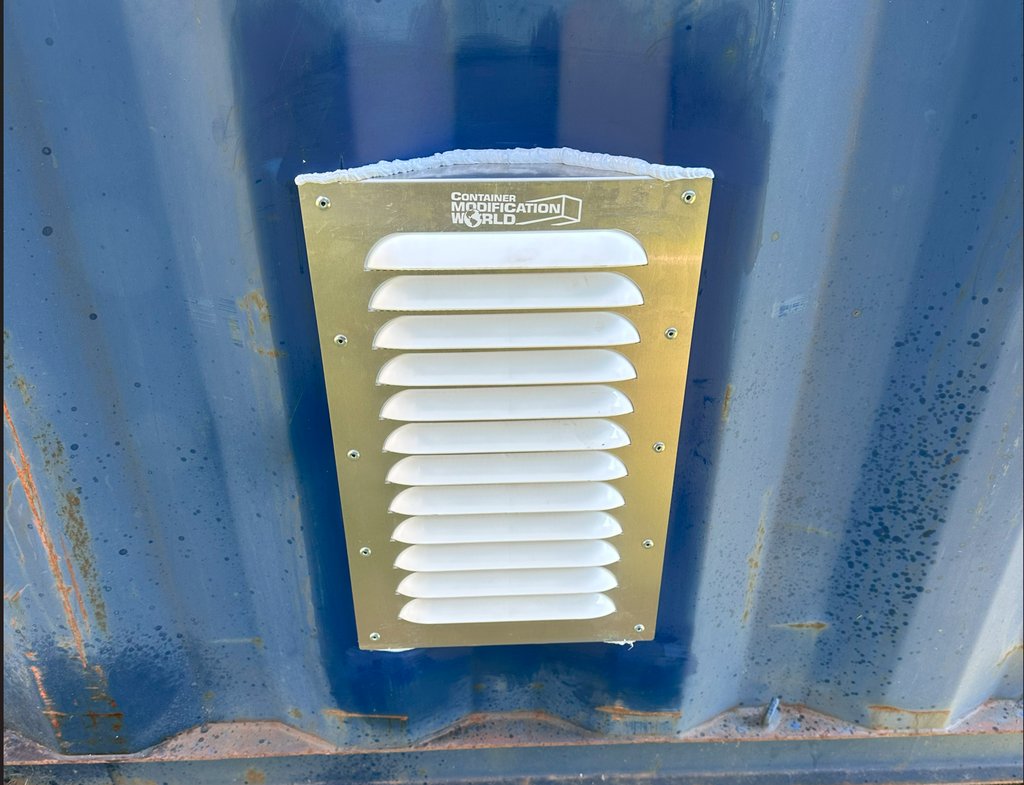

Attention to Detail
