Description
Shipping Container Lock Box
Our Right Hand Container Lock Box is designed around the 80mm shackle lock (CMW™, FJM, SOBO, 8080).
- The kit comes with all necessary hardware for installation on both dry van containers (20' and 40') and insulated and non-insulated 53' intermodal containers or van trailers. 5.5" width makes this lock box work for 53's when previous versions were too wide.
- Our design is smaller than other lock boxes on the market, which means less leverage and less room for thieves to cut the lock.
- Easy bolt-on installation with Grade 5 hidden carriage bolts.
- Back washer plate doubles as a stencil for marking exact drill-hole location.
- Perfect laser-cut and pressed profile to clear door seal while retaining a snug fit against both doors.
- Durable powder coat finish - textured black.
Features:
- Fits: 7', 8', 9', 10', 20', 40', 45', 48' & 53' Shipping Containers
-
Designed to be only 5.5" to fit between lock rods on 53' containers and van trailers.

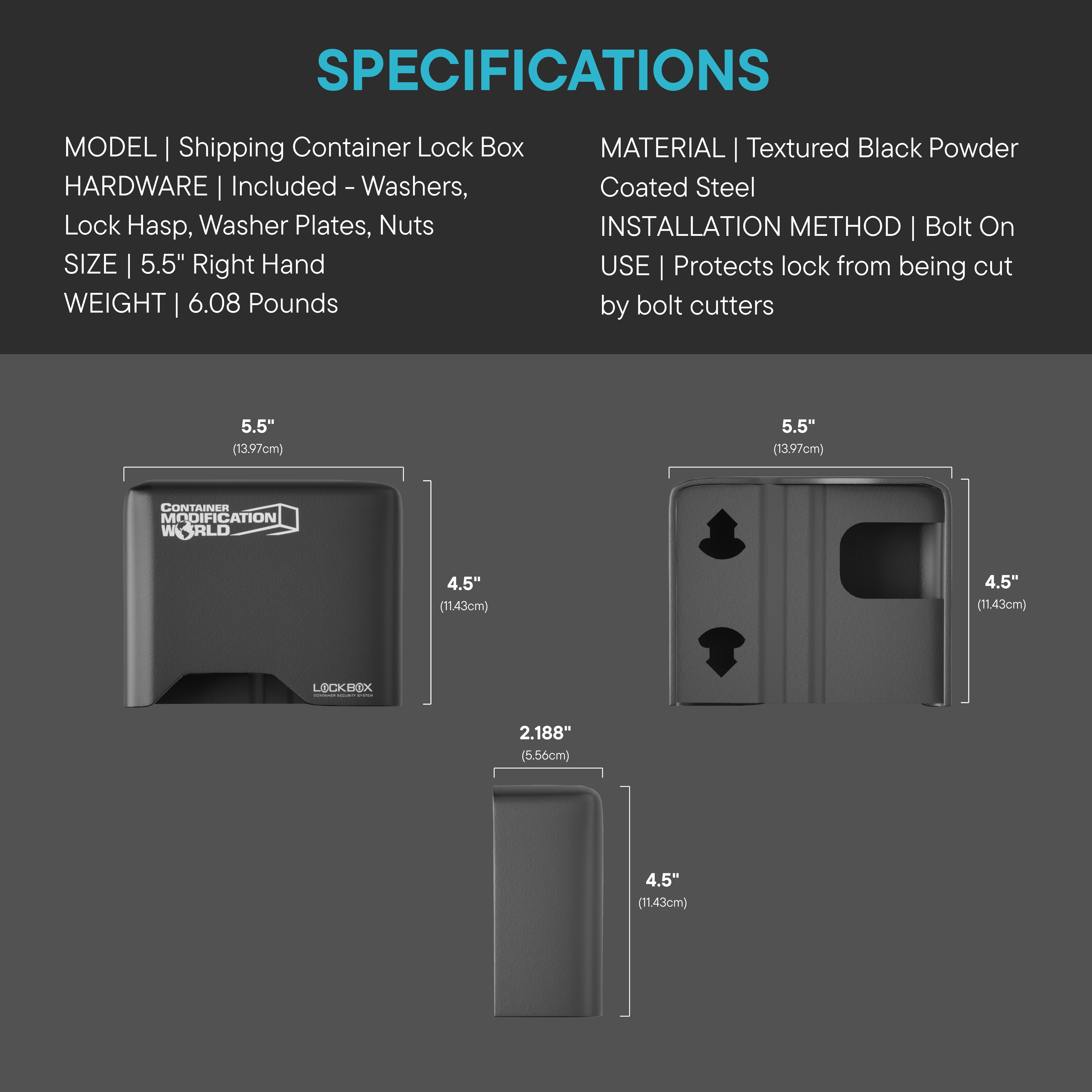

Specifications
- Item Weight : 6.08 pounds
- Package Dimensions : 6.7 x 6.4 x 3.3 inches
- Size : 5.5" Right Hand
- Color : Textured Black
- Finish : Textured Black Powder Coated
- Material : Steel
- Pattern : Safe Box
- Installation Method : Bolt-on
- Head Style : Grade 5 Carriage Bolt

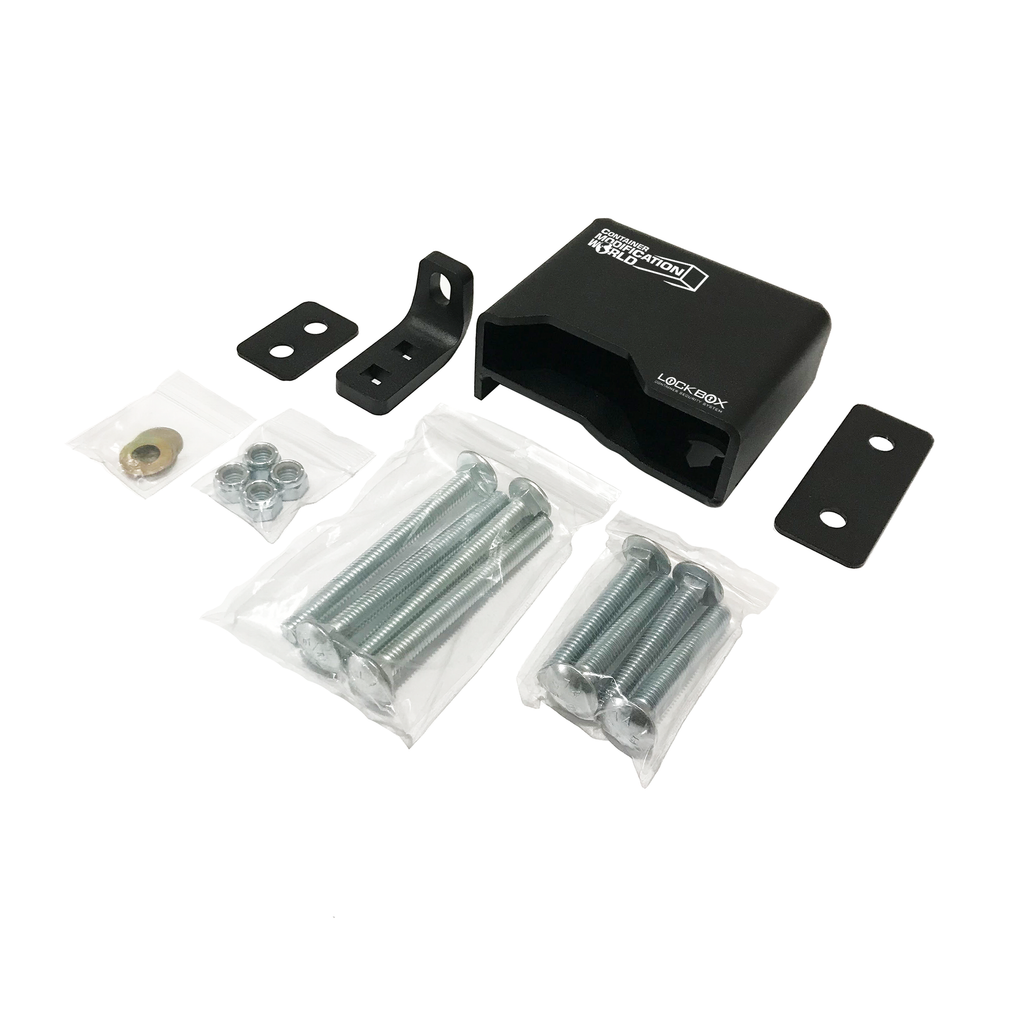

Included hardware
- Back washer plate doubles as a marking tool. Can be used as front spacer plate for misaligned doors.
- Two sets of Grade 5 Carriage Bolts for Insulated and Non-Insulated door thicknesses
- Includes security decal to deter thieves
Photo gallery
Video gallery
Installation Instructions
Instructions Coming Soon
