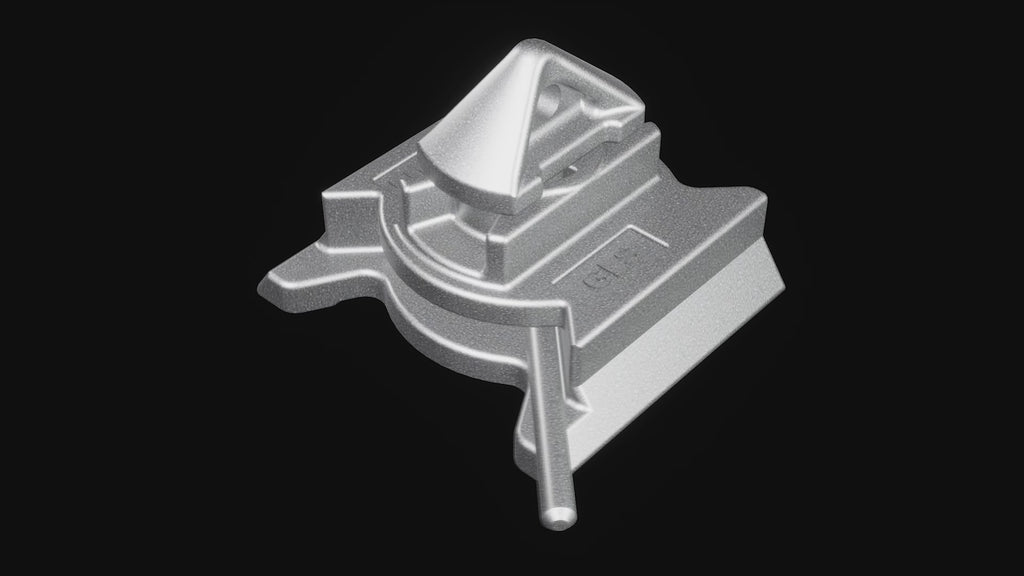

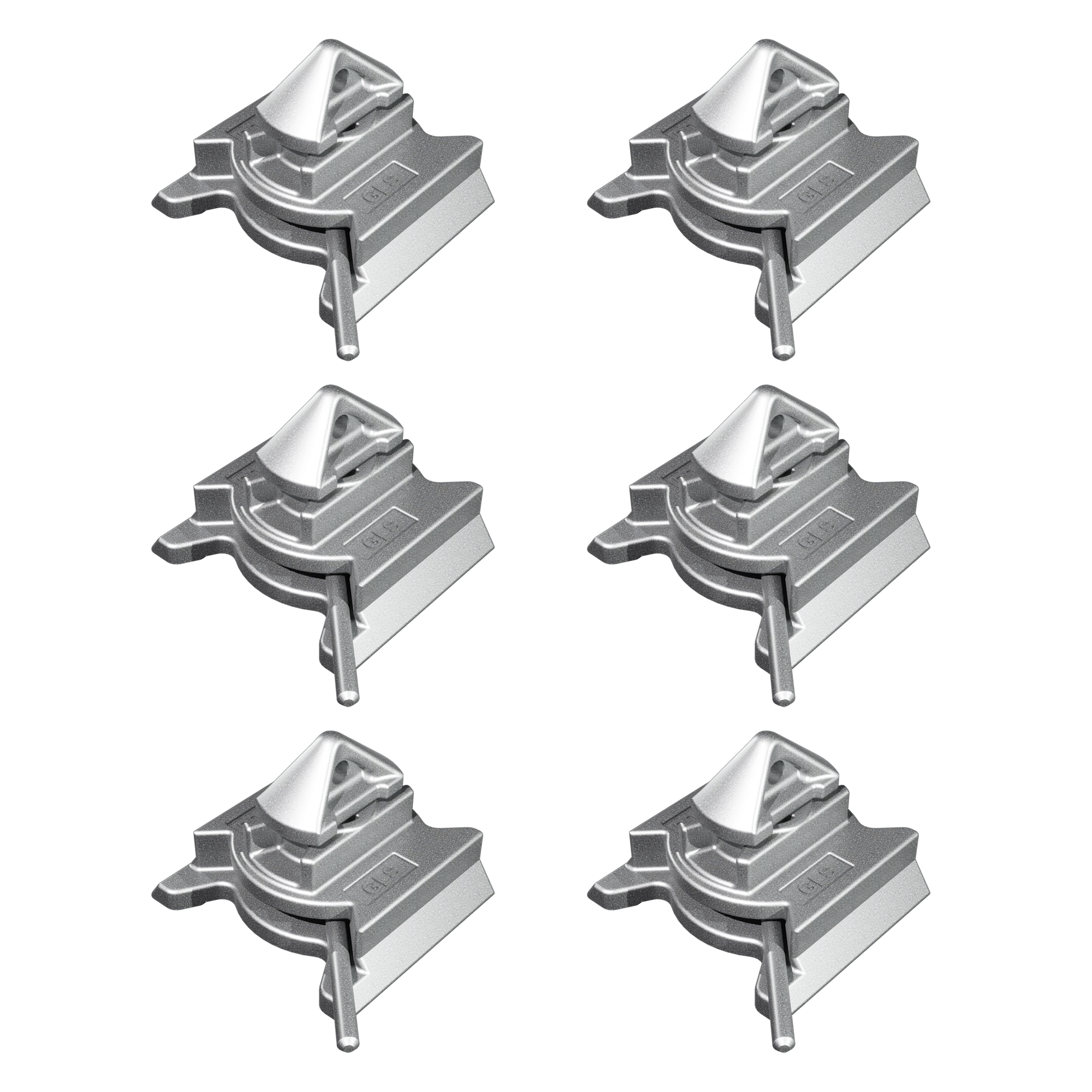

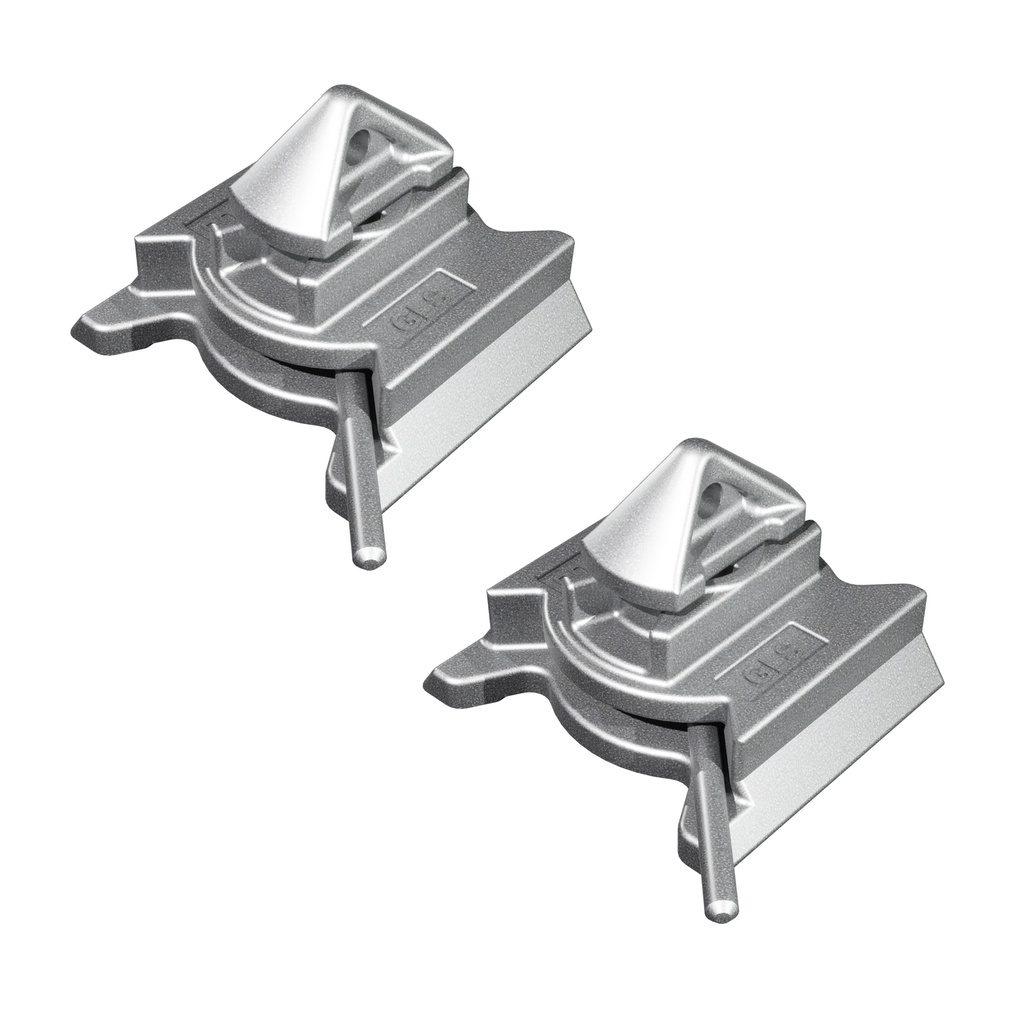

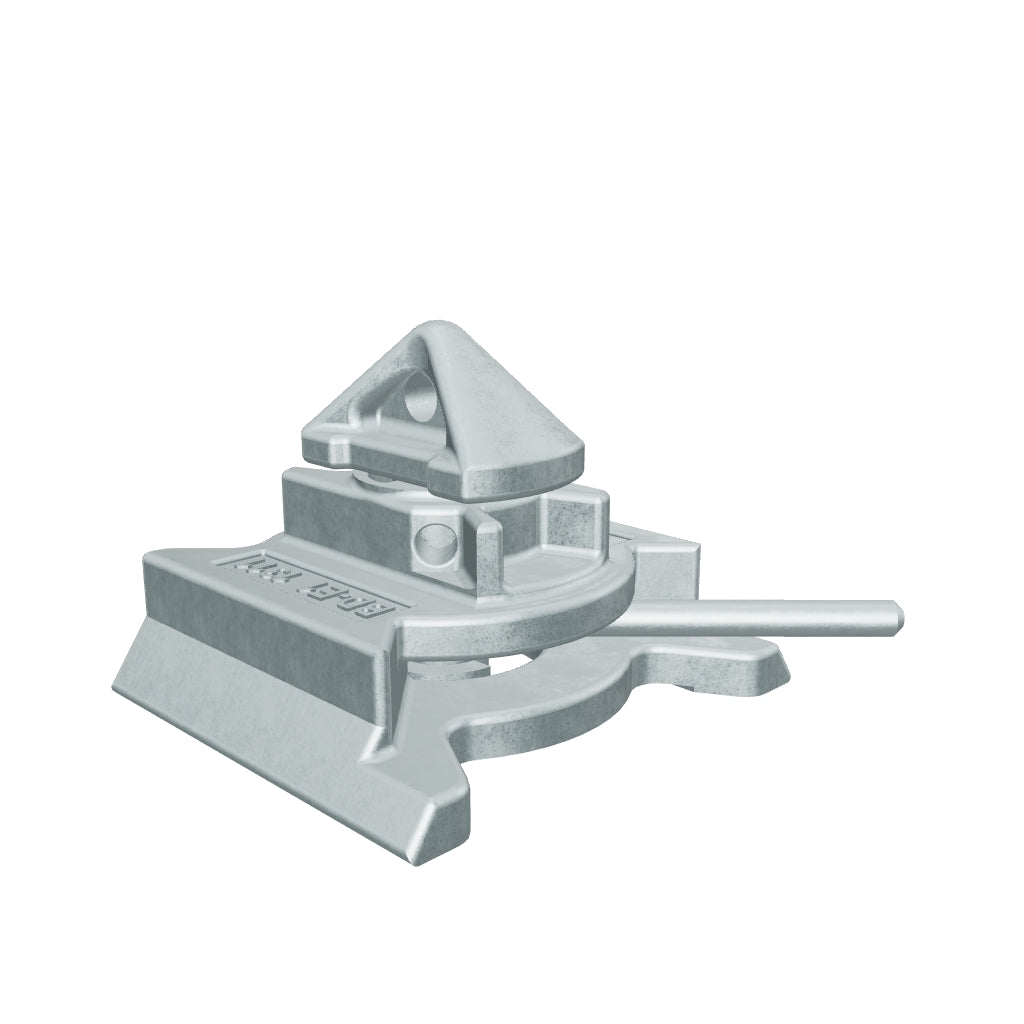

Dovetail Deck Mount Twist Locks

These Deck Mount Twist Locks have a flat base, which is generally used to weld directly onto steel decks on ships and secure the containers during transport.

• Similarly, you can easily weld these lock mounts onto trailers or install them into various other surfaces like concrete to keep your container in place during transport or long-term storage.

CASTED STEEL CONSTRUCTION

• Designed to safely and securely connect empty or loaded containers through their corner castings.

EASY-TO-USE DESIGN

• Simply shift the lever to open / close
  the deck mount.

FLAT BASE DESIGN

• The flat base design can be used to weld the lock directly onto steel decks during transport or long-term storage.

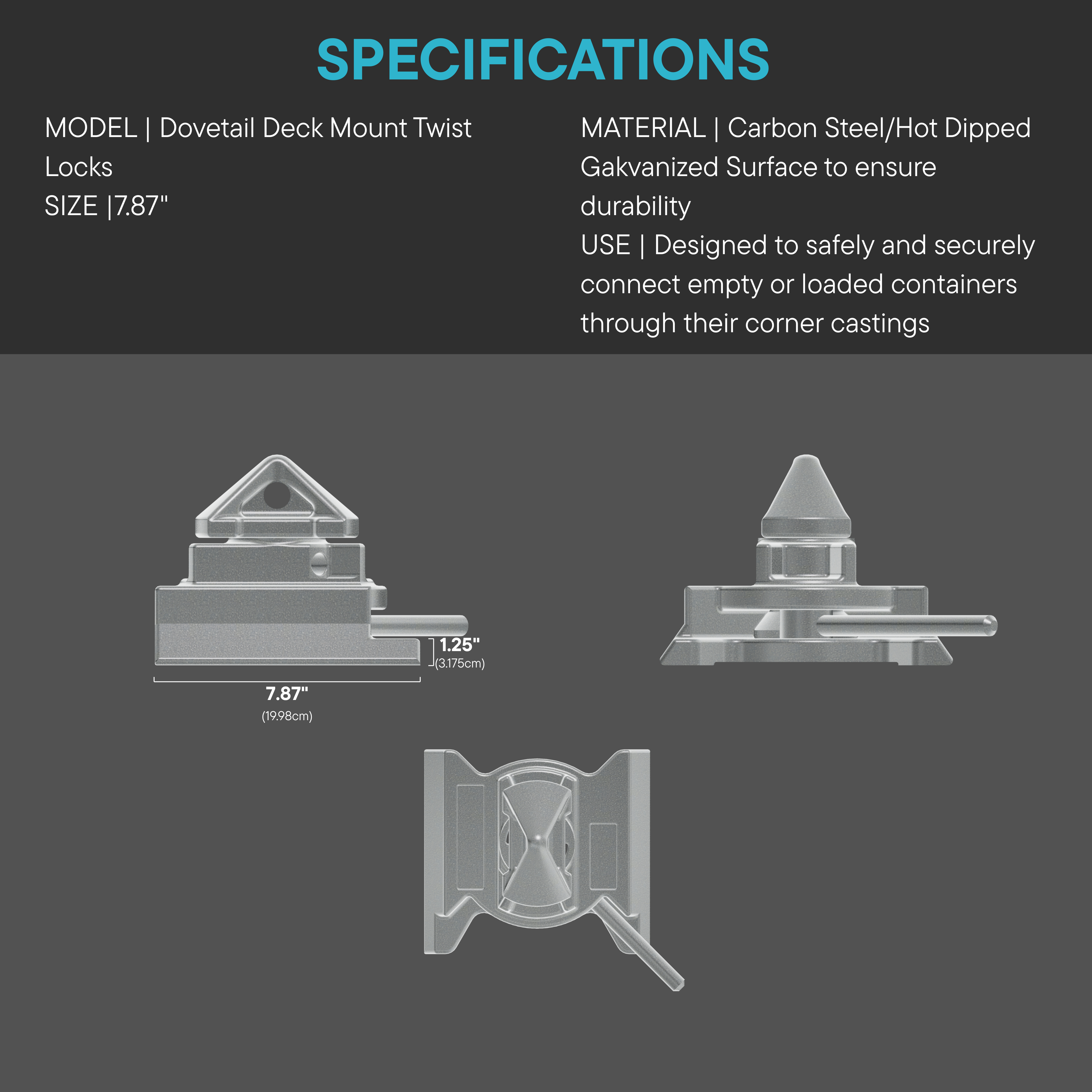

Specifications

• Weldable to steel or use with a foundation
• Manual, left-locking
• Heat Treated: Drop Forged, Tempered, and Quenched
• Carbon Steel
• Hot-dipped galvanized surface to ensure durability
• Requires 4 per container

MBL (Minimum Breaking Load)
– Tension: 500 KN
– Shear: 420 KN
– Compression: 2000 KN



Included hardware

Photo gallery

Installation Instructions

Instructions Coming Soon
