Description
NEW & IMPROVED DESIGN!
- Framing kits allow for quick and easy installation of any appropriately sized window with a vinyl nailing strip.
- Patent Pending
- To purchase vinyl window only please see our vinyl window listings.
- Galvanized steel frame components. Includes all necessary hardware and edge trim for the top of the window for a clean appearance and watershed seal.
- Our engineered framing kits are laser cut with perfectly matched, symmetrical hole locations for a quick, easy, and clean install. The folded profile sheds water perfectly.
- Before starting the process of installation please take a note that :

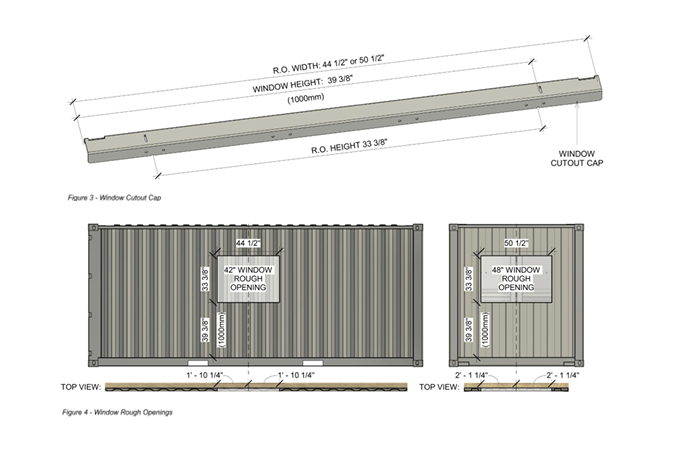

- CMW window frames are corrugation dependent. The 42” window frames can only be installed on side wall corrugations and the 48” window frames can only be installed on end wall corrugations.
- Window cutout cap doubles as a marking tool!
- Other than the difference in wall placement and rough opening size the installation of these two frames are the same.
- Includes 58 rivets for 48" window and 54 Rivets for 42" window
- Included Hardware
- Steel/Steel, 3/16", 1/2", Open Rivets
- No.12, 7/8" Hex Head Self Tapping Screws
Watch Our Recent YouTube Video For More Details
Installation Instructions
Window Frame Installation Instructions (Download PDF)
