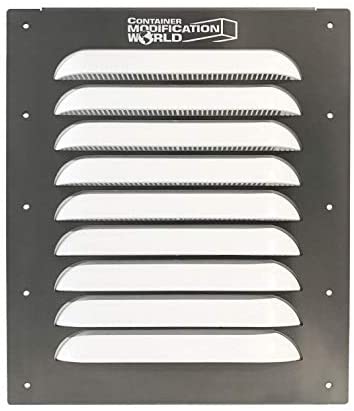

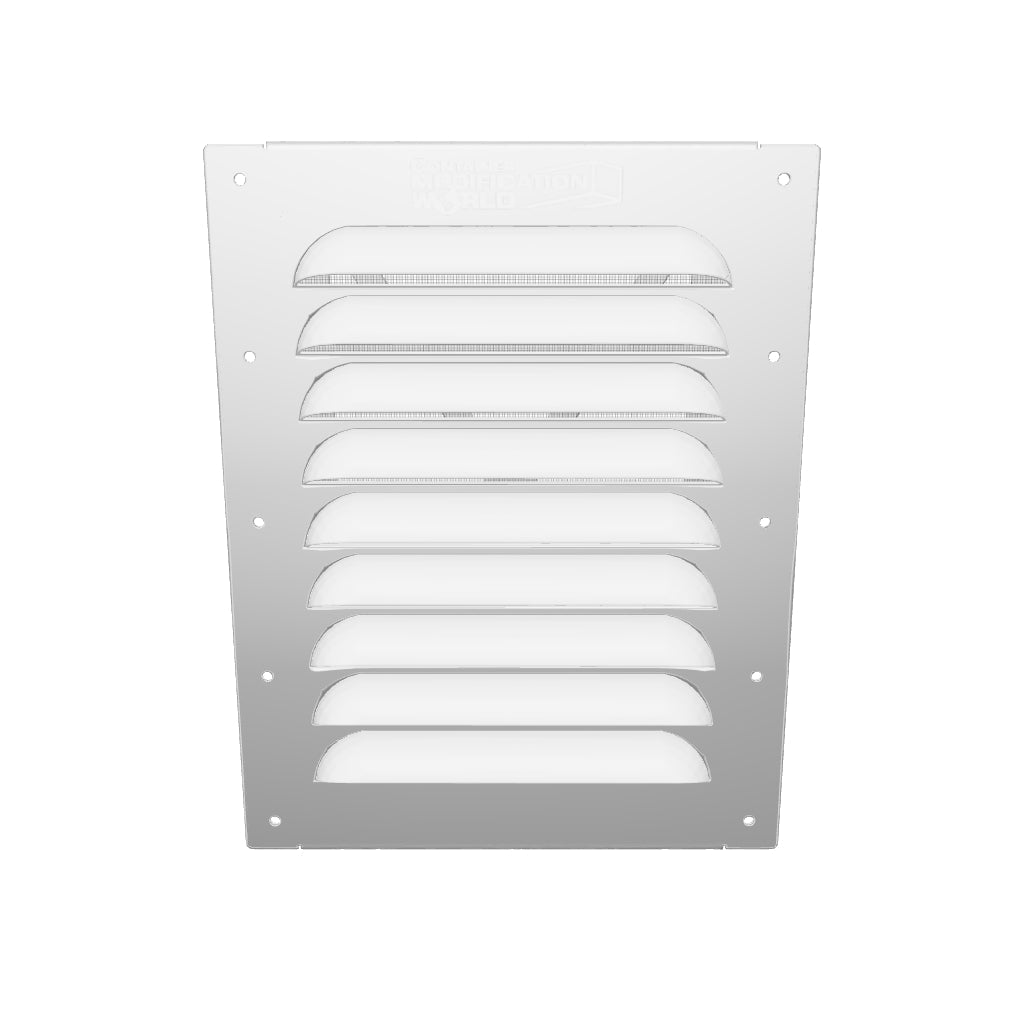

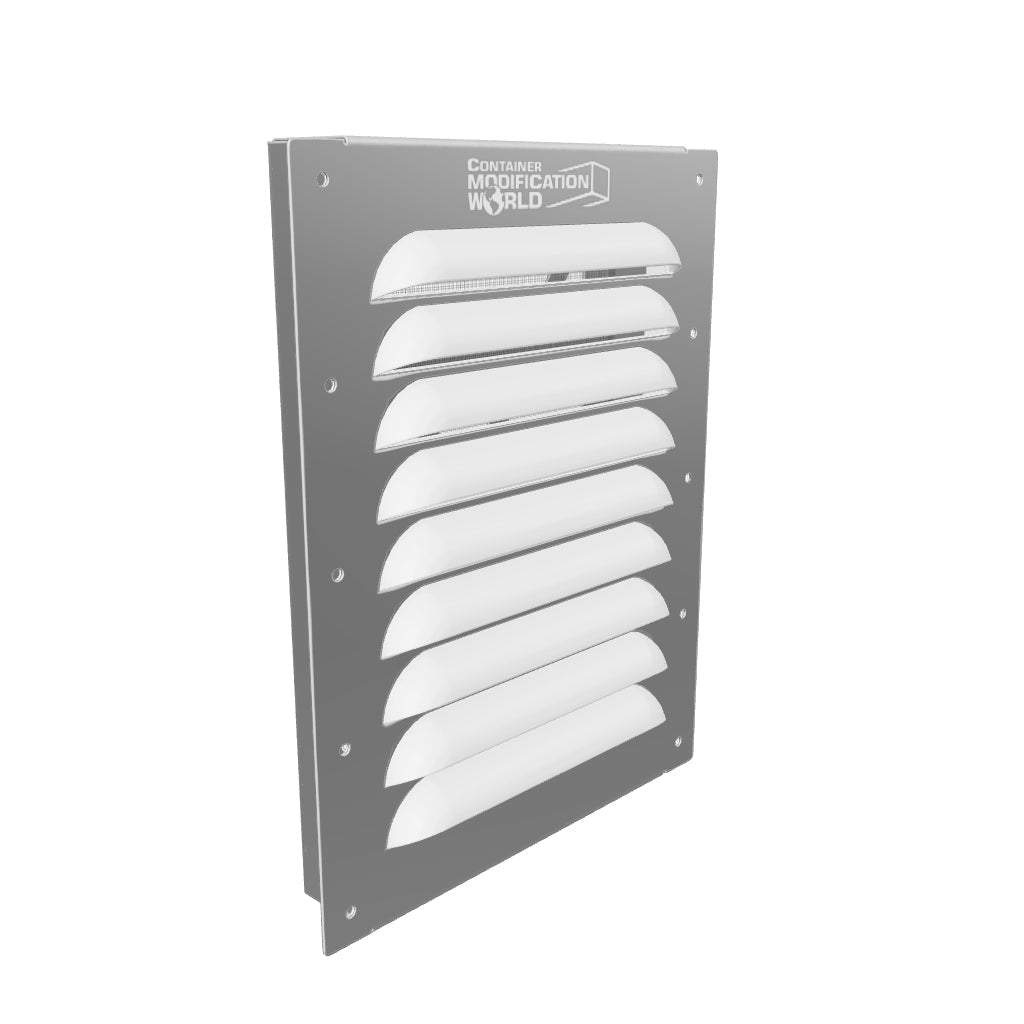

Description

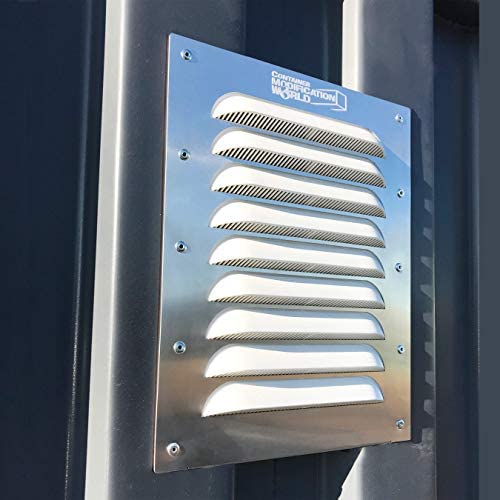

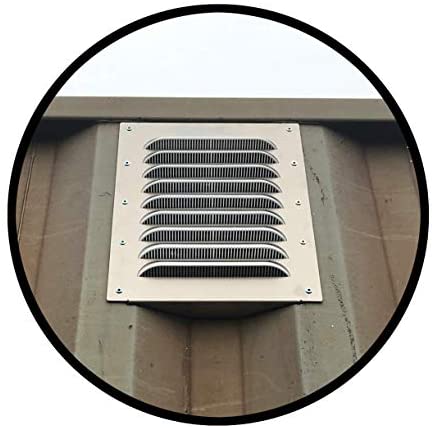

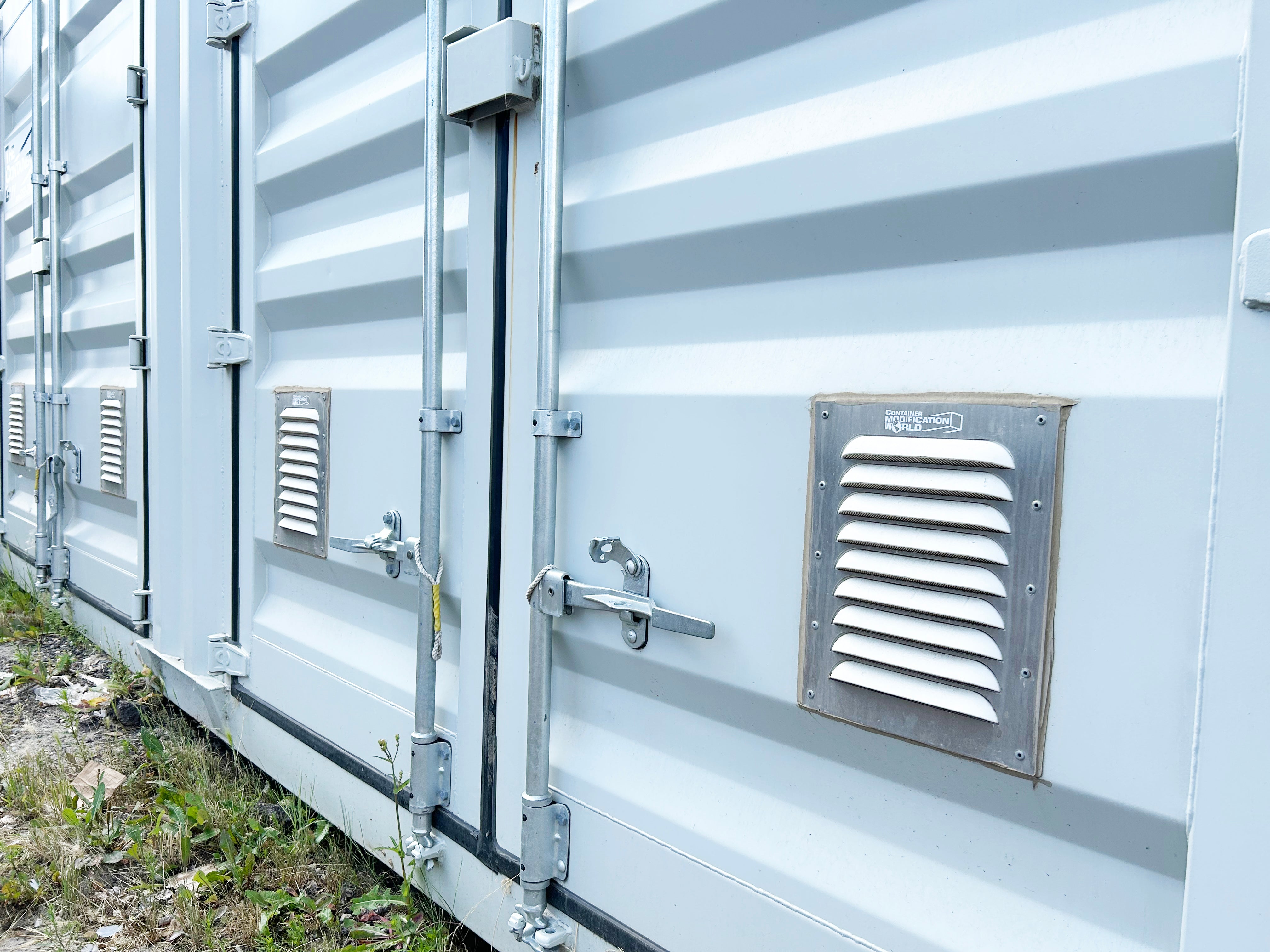

BigAir Louvered Container Vents are engineered to be installed anywhere on shipping container sidewalls, end walls, or doors - from floor to ceiling.

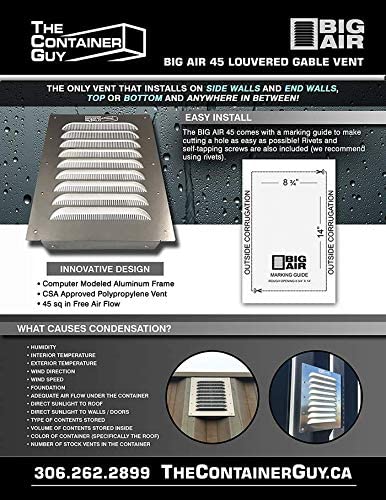

BigAir Louvered Container Vents (sizes: 30, 45 & 60), come with a marking guide to make cutting a hole as easy as possible! Rivets (Alum/Alum, 3/16", 1/4") and self-tapping screws are also included (we recommend using rivets).

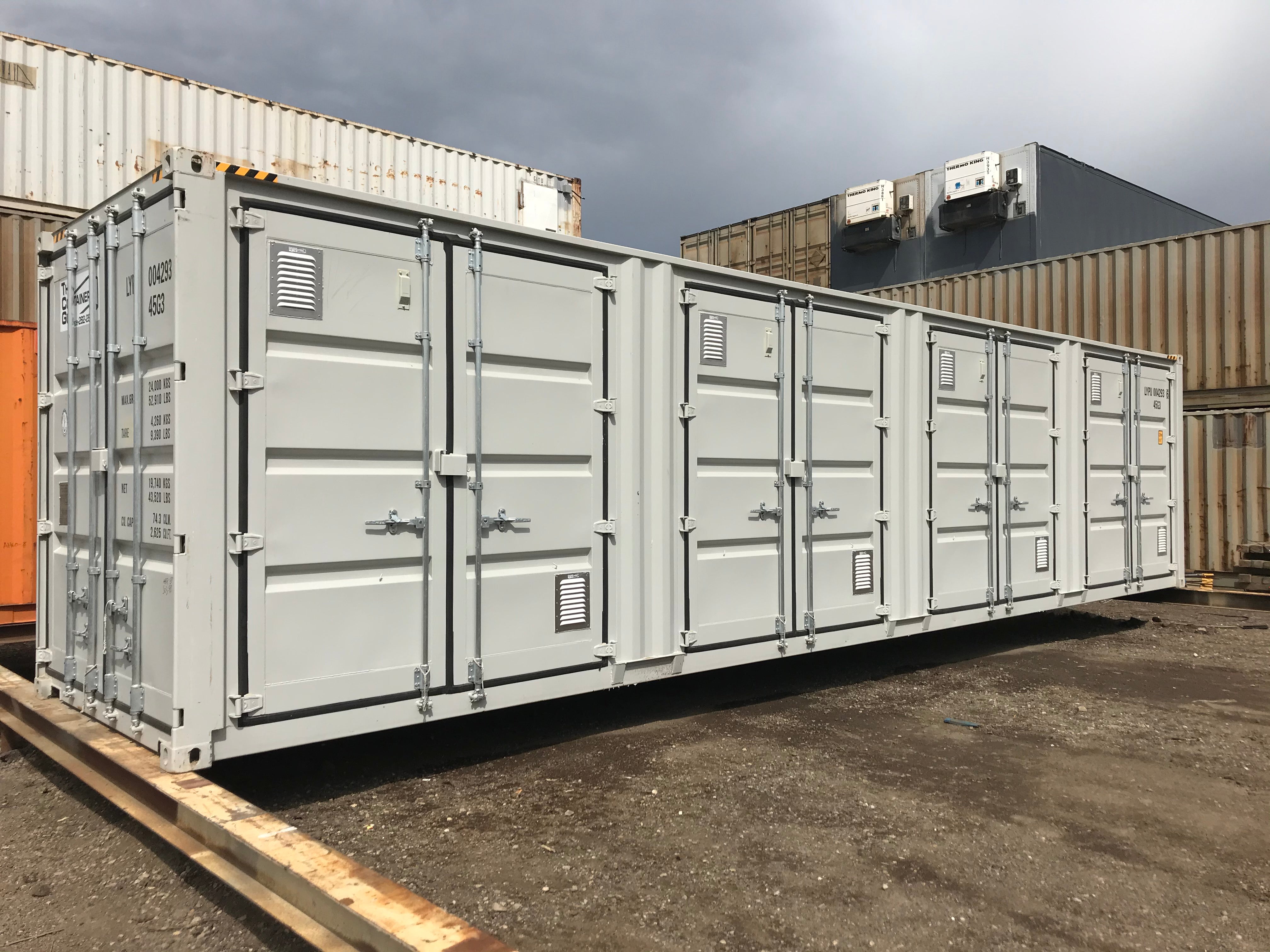

A minimum of two vents are required per container for temperature & moisture control in temperate climates. Four vents per container are suggested in tropical climates. For HAZMAT ventilation, two vents installed high and two vents installed low is suggested. Customer's responsibility to ensure OSHA compliance when storing hazardous materials.
Eliminate moisture and excess heat with our state-of-the-art computer-modeled design. Made with highly durable Polypropylene and Aluminum, the BigAir will never rust!
The variables inside a shipping container are always changing. When the combination of those variables creates an environment prone to humidity, condensation will happen.
The above-mentioned variables include, but are not limited to the following:
► Humidity
► Interior temperature
► Exterior temperature
► Wind direction
► Wind speed
► Foundation
► Adequate airflow under the container
► Direct sunlight to roof
► Direct sunlight to walls/doors
► Type of contents stored
► The volume of contents stored inside
► Color of container
► Specifically the roof
► Number of stock vents in the container
Features:
- Engineered to be installed anywhere on shipping container side walls, end walls or doors from floor to ceiling. Fits: 8', 9', 10', 20', 40', 45', 48', 53' corrugated and smooth wall shipping containers, van trailers & all wood construction buildings
- Utilizes Duraflo 680812 CSA Approved Gable Vent
- High UV Resistant Polypropylene and Laser Cut Aluminum Frame will never rust!
- 30, 45, or 60 Sq. In. Net Free Area, depending on the size of vent you choose
- BigAir 30 = 9” x 10 ½” Rough Opening

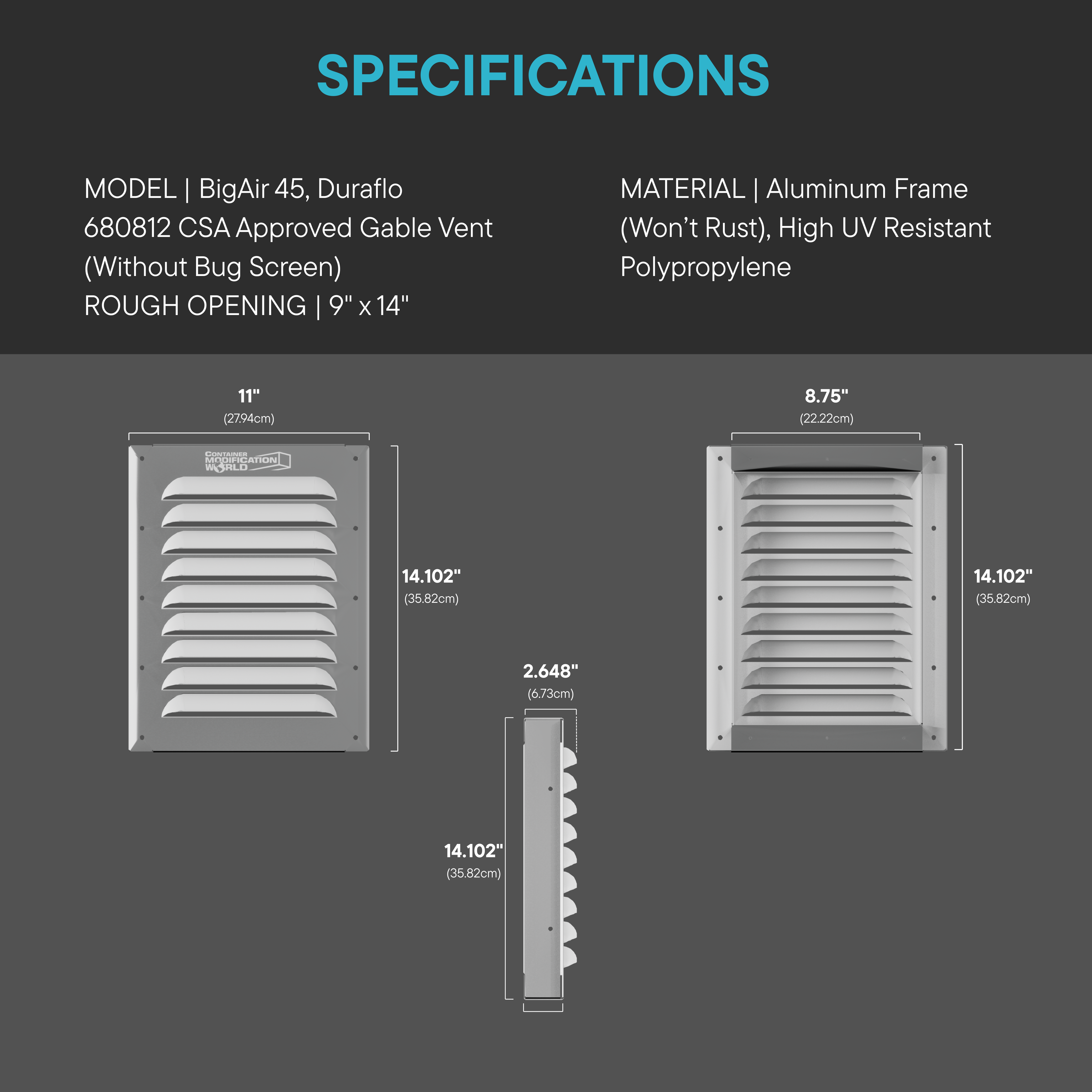

- BigAir 45 = 9" x 14" Rough Opening
- BigAir 60 = 9” x 17 ⅞” Rough Opening
- Disclaimer: Ensure Your Container Complies With OSHA When Storing Hazardous Materials
- Includes Steel/Steel, 3/16", 1/2" Rivets and No.10, 7/8"Hex Head Self Tapping Screws

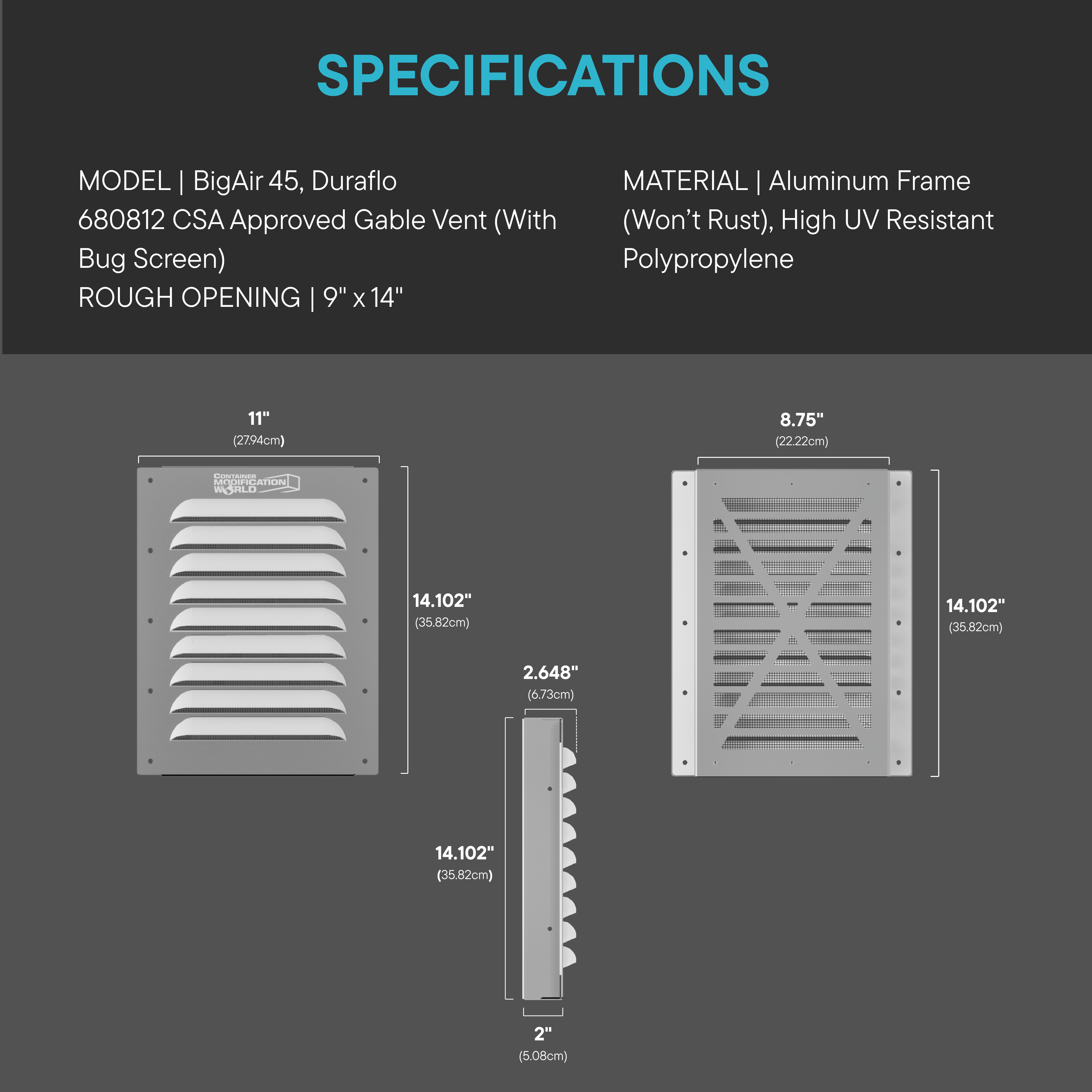

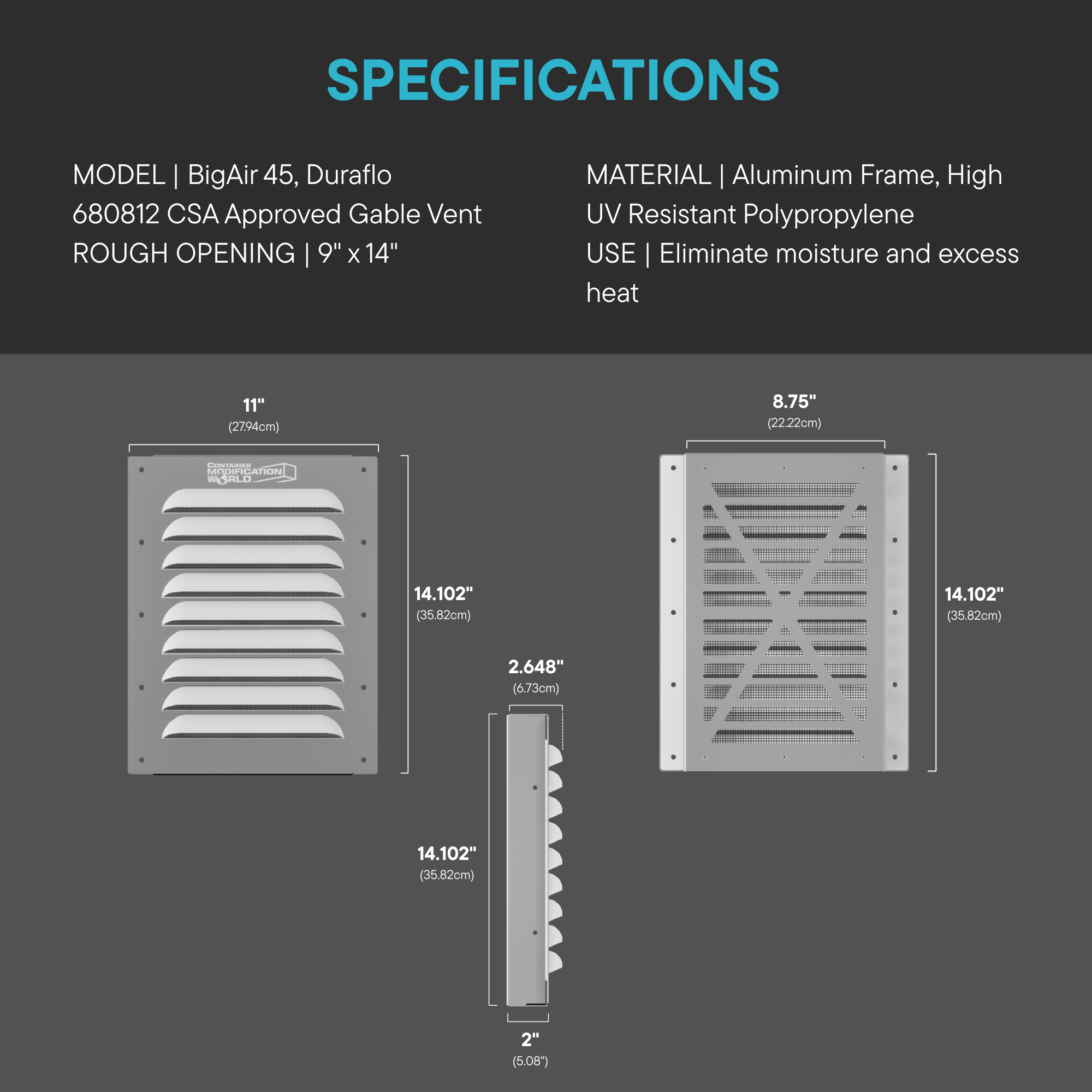

Big Air 45 Specifications:
- Manufacturer : Container Modification World
- Item Weight : 1.44 pounds
- Package Dimensions : 15 x 12 x 5 inches
- Material : Wood, Aluminum, Plastic
- Item Package Quantity : 1
-
Batteries Required? : No

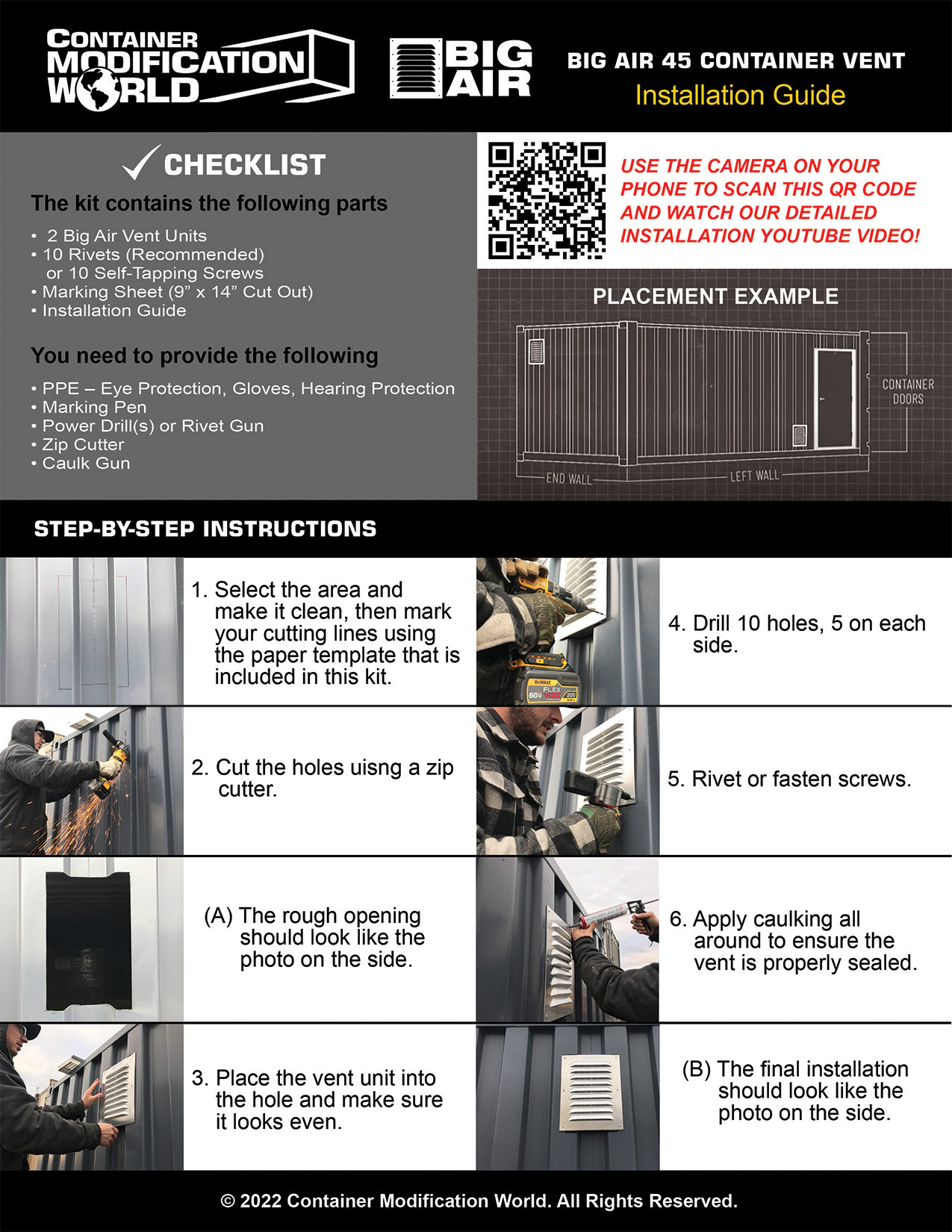

Installation Instructions
BigAir30 Installation Instructions (Download PDF)
BigAir45 Installation Instructions (Download PDF)
BigAir60 Installation Instructions (Download PDF)
Short Link
https://containermodificationworld.com/bigair45-vents
You may also like
Recently viewed
I have been happy with everything I have bought from these guys.
The vents look like they are made for the container because they are.
Really put together good and looks good

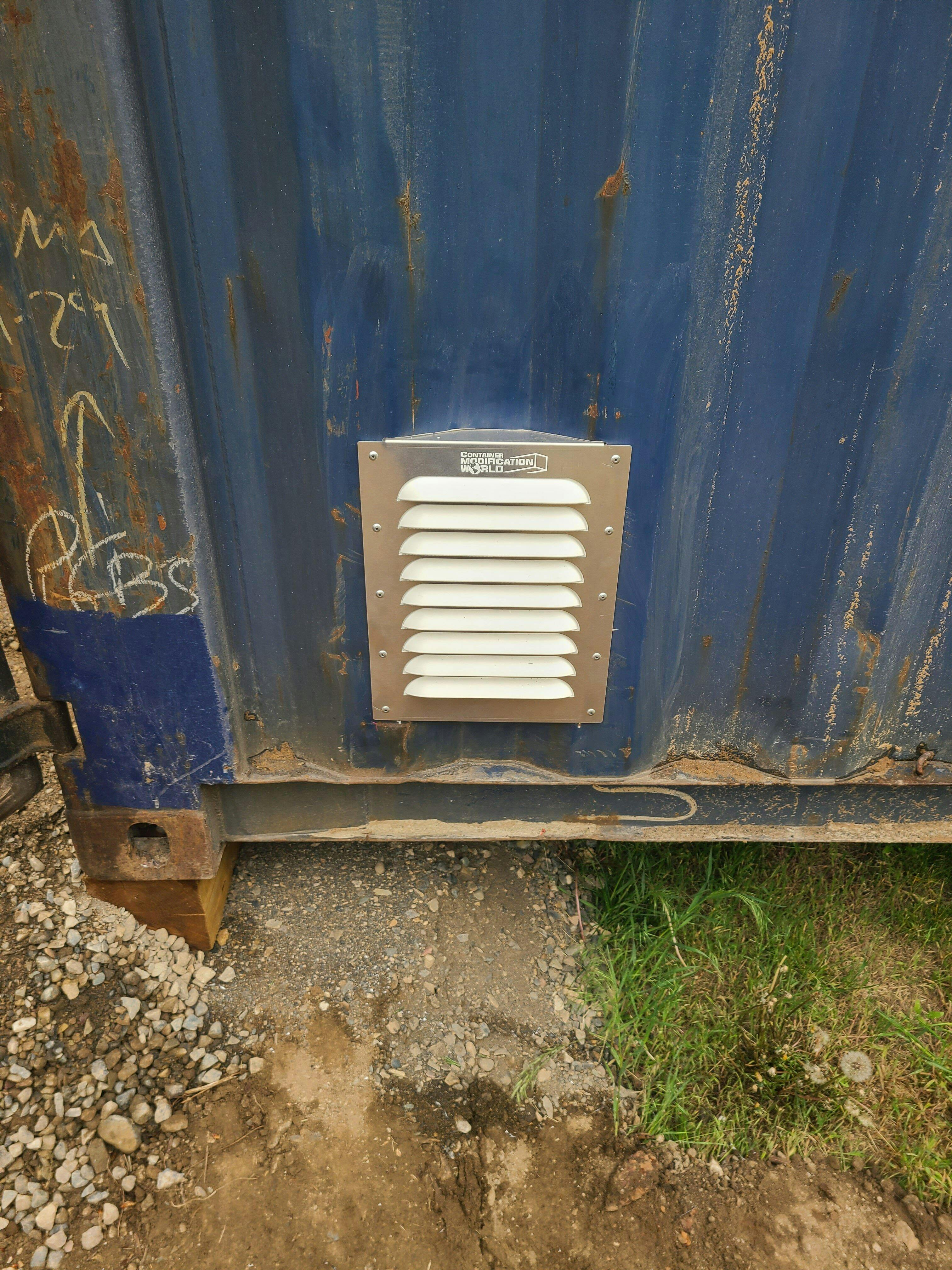

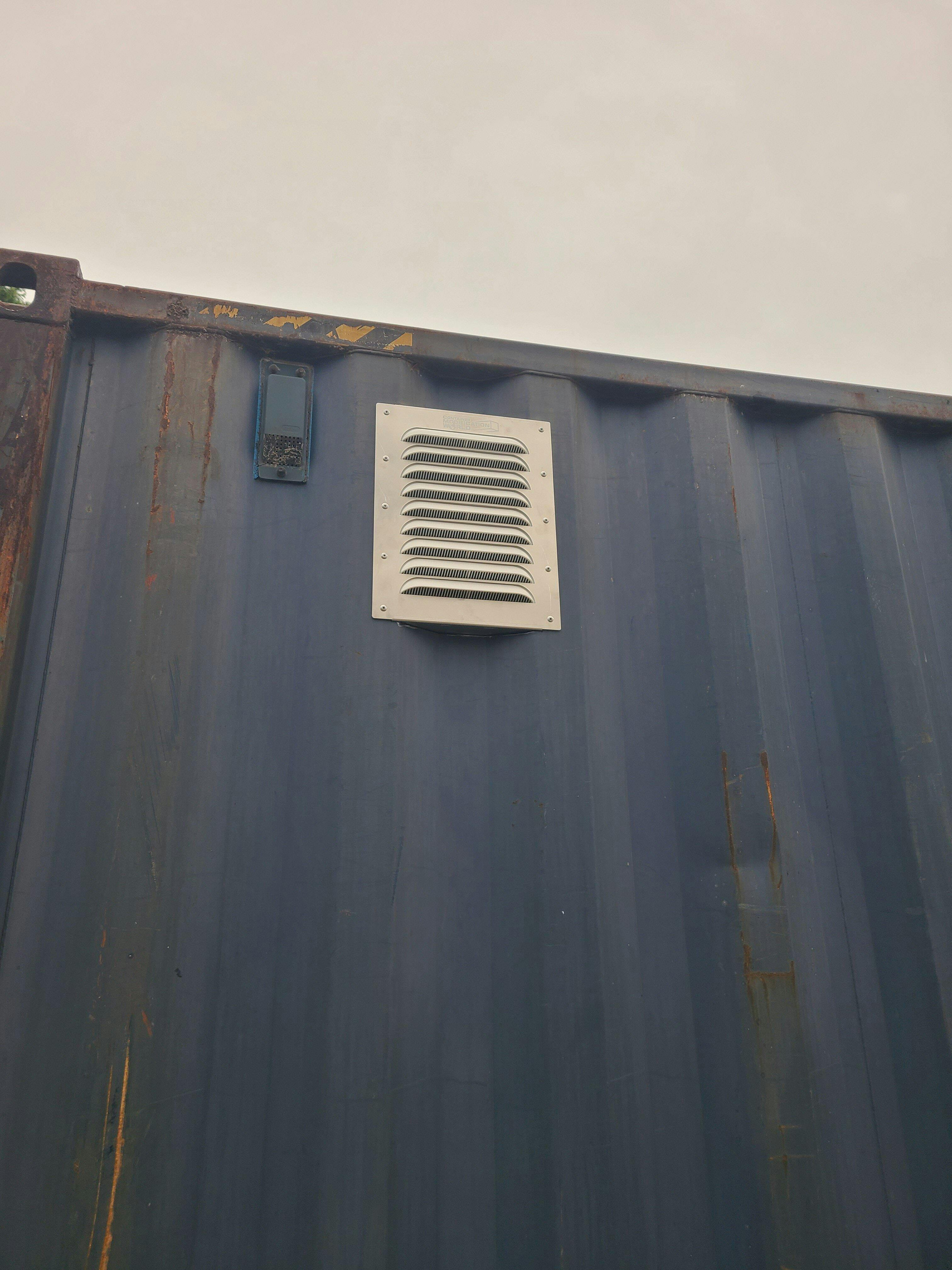

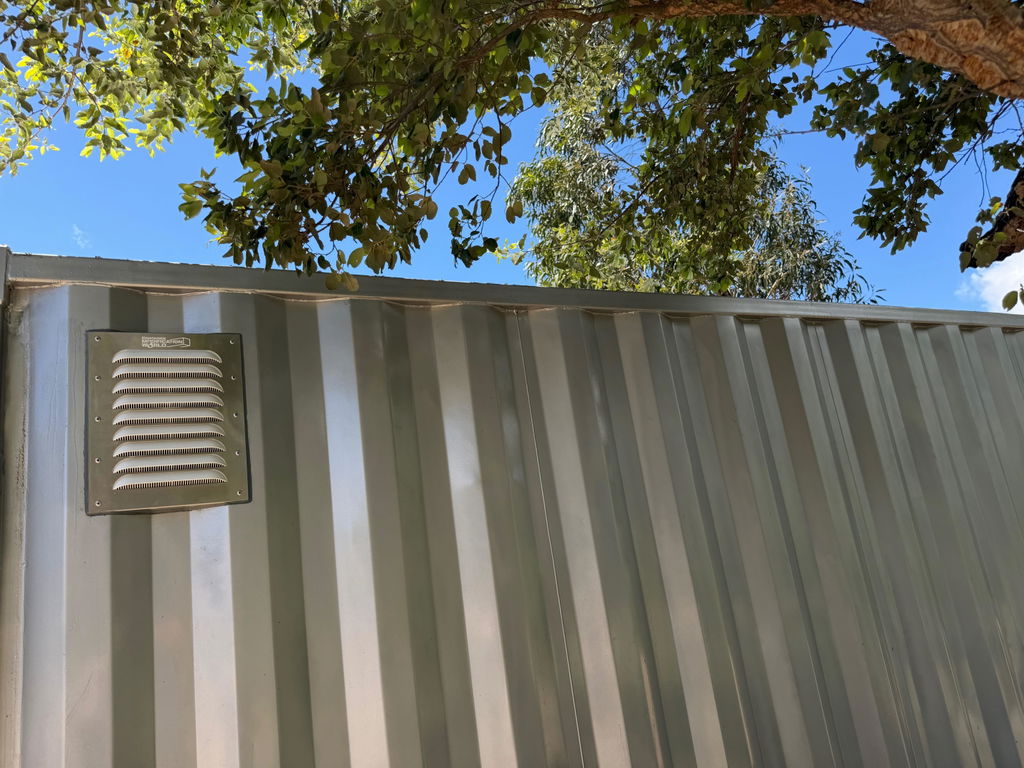

We installed one low on the north side and one high on the south side of our 20' container and the difference inside on the first hot day was incredible, temperature and humidity were down and instantly noticeable. Installation was smooth and easy. Yes expensive, but worth it for the function to keep our stored items at a more regulated temperature.
This product was very easy to install. Works great to keep the container cool.
Installed 2 per 20’ container, caulked all around as recommended inside and outside. Design of vents allow water to get into the vent and leak out the bottom on the inside not the outside as it should. It leaks out inside because of the folds in the aluminum frame are not sealed and allow the water to leak past the seams into your sea cans. Only way to fix it is to caulk ALL the seams which is ridiculous for the price of these vents of $100 per vent. If you don’t want water leaking into your sea cans you will have the caulk all the seams, just a terrible design.
