In today's video follow along as Channing shows you how to use wood to frame the exterior of a shipping container. Channing will walk you through the benefits of using wood for the exterior, how you can use these brackets to build a roof for your container and many more.
A New Exterior Wood Stud System for Shipping Containers

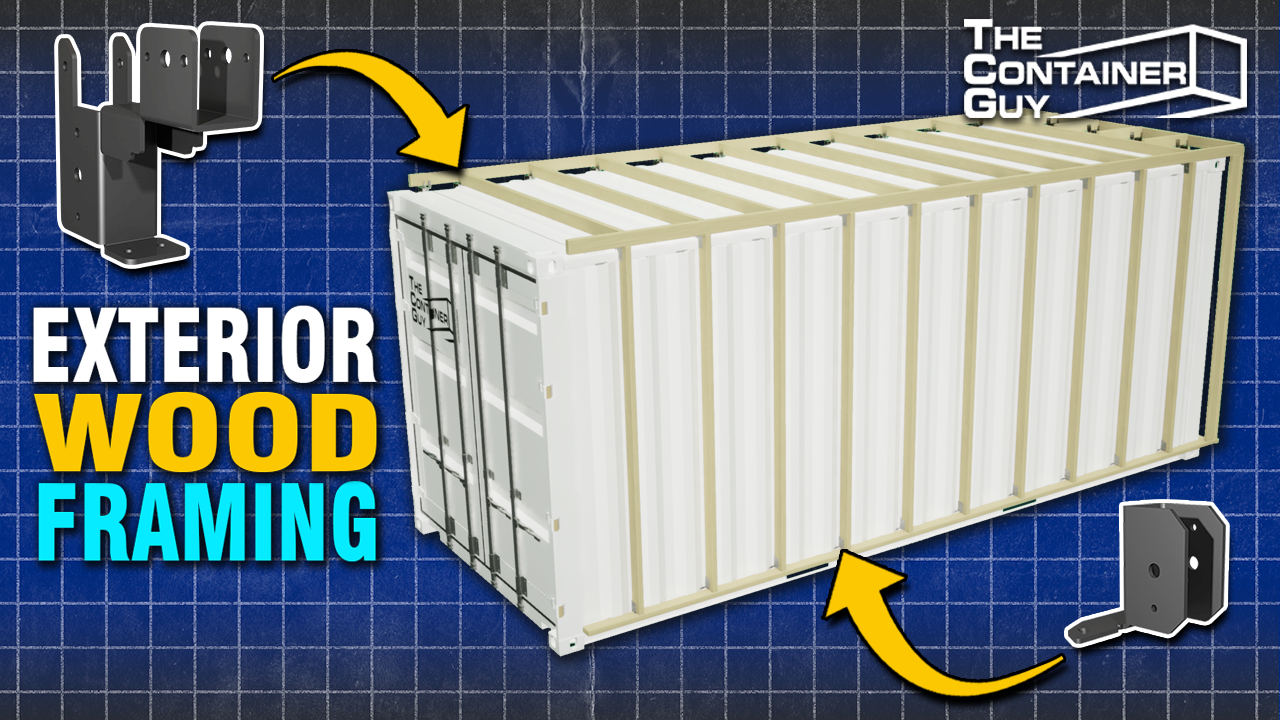

This project introduces a new bracket system designed to wood stud the exterior of shipping containers without drilling holes through the steel shell. The goal is to preserve the container’s structural integrity and weatherproofing while allowing it to be finished like a conventional home.
Instead of puncturing the container walls, the brackets install into the existing bottom channel and top tubing. This creates a secure mounting system for exterior wood framing without compromising the steel envelope.
Non Invasive Installation Approach
One of the biggest advantages of this system is that it does not require drilling through the container walls.
The brackets:
-
Fit into the bottom channel
-
Engage with the top tubing
-
Avoid penetrating the steel skin
-
Preserve structural strength
-
Maintain weather resistance
This allows exterior cladding to be added without creating corrosion points or weakening the container.
Prototype Development and Adjustments
During early testing, the bottom plate was repositioned to align more accurately with the container’s corner castings. This adjustment ensures the container can still be lifted properly using fork pockets.
Maintaining lifting functionality is important for transport and site flexibility.
The prototype phase revealed several areas for refinement, especially when dealing with different container styles.
Dealing with Container Variations
Not all containers are built the same.
Some containers feature 60 millimeter top tubing, which provides a solid structural connection point for the brackets. Others use a folded sheet metal top edge similar to angle iron, which complicates fastening.
For angle iron style containers, modifications include:
-
Using alternative top and bottom bracket configurations
-
Avoiding through bolting
-
Relying more heavily on conventional lumber fasteners for exterior sheeting
These variations must be accounted for to ensure the system works across multiple container types.
Corner Challenges
One issue identified during testing was fastening at the container corners. Without a continuous top plate running across the corners, attachment options for sheeting and strapping are limited.
A proposed solution involves adding a vertical top plate along the side walls to create a continuous frame around the container. This would provide improved structural continuity and better fastening points for exterior finishes.
Corner refinement remains one of the main development areas.
Structural and Design Flexibility
The bracket system opens up several possibilities for exterior finishes and roof designs.
Potential applications include:
-
Adding overhangs
-
Building single slope roofs
-
Increasing lumber dimensions from 1x4 to 2x10 for larger spans
-
Creating multi container assemblies such as garages or storage buildings
Because the framing is external, the container can be visually transformed to match residential or commercial aesthetics while retaining its structural core.
Insulation and Finish Options
The system supports various exterior finishing methods including:
-
Wood sheeting
-
Strapping
-
Metal cladding
-
Batten style insulation systems
Window and door installation techniques are still being explored, along with different insulation strategies for improved thermal performance.
This remains an active development area.
Ongoing Learning and Iteration
The project is still in its early stages and continues to evolve through testing and feedback.
There is an open acknowledgment that exterior carpentry presents new challenges compared to metal fabrication. Viewer input and collaboration are encouraged to help refine corner detailing, fastening methods, and overall system performance.
Final Thoughts
This exterior wood stud bracket system represents an innovative way to finish shipping containers without compromising their steel structure.
By avoiding penetration of the container shell, the system preserves strength and weather resistance while enabling conventional framing techniques on the outside.
Although still in prototype form, the concept shows strong potential to expand the aesthetic and structural possibilities of shipping container builds.
With further refinement, this approach could become a practical solution for residential and commercial container projects.
