CSM Pipe Rack System for Shipping Containers

The CSM Pipe Rack System is a heavy-duty, strut-mounted storage solution designed specifically for shipping container interiors and exteriors.

• Designed to integrate directly with the CSM modular strut framework, this system provides secure, adjustable storage for pipe, conduit, tubing, lumber, and materials inside corrugated steel containers.

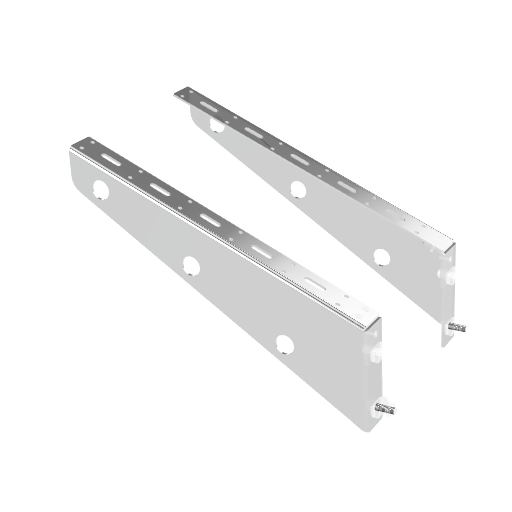

• Sold as a 2 Pack (Left +Right Bracket Set)

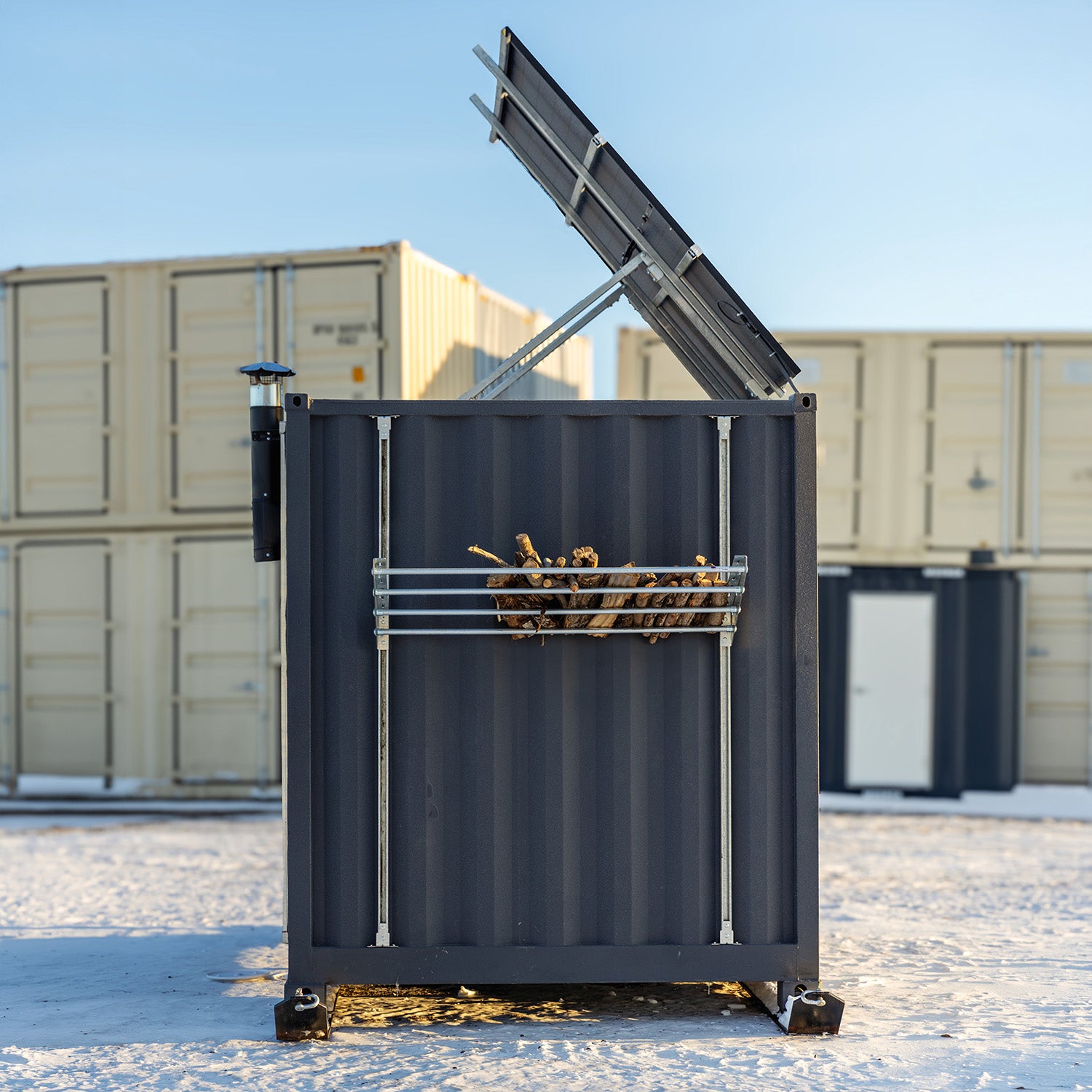

• Designed for interior or exterior shipping container installation

• Securely mounts to CSM struts using 3/8" hardware

• Fully adjustable height along installed strut channel

• Compatible with corrugated steel container walls

• Modular system – add additional bracket sets to increase load capacity

• Clean, professional appearance inside modified containers

• Heavy-duty steel construction

• Ideal for pipe, conduit, tubing, and material storage

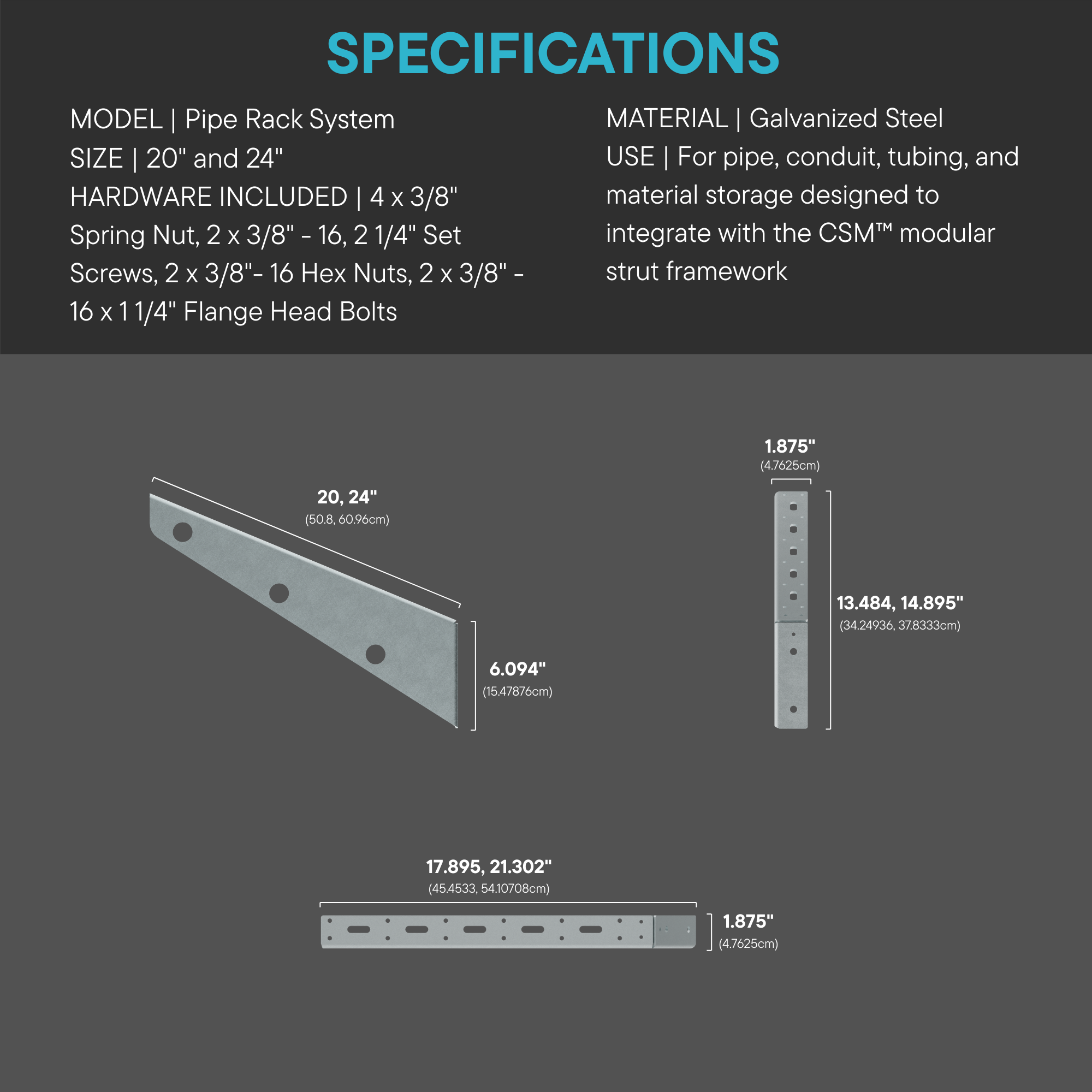

Specifications



AVAILABLE BRACKET SIZES

20" CSM Pipe Rack – 2 Pack

COMPONENTS:

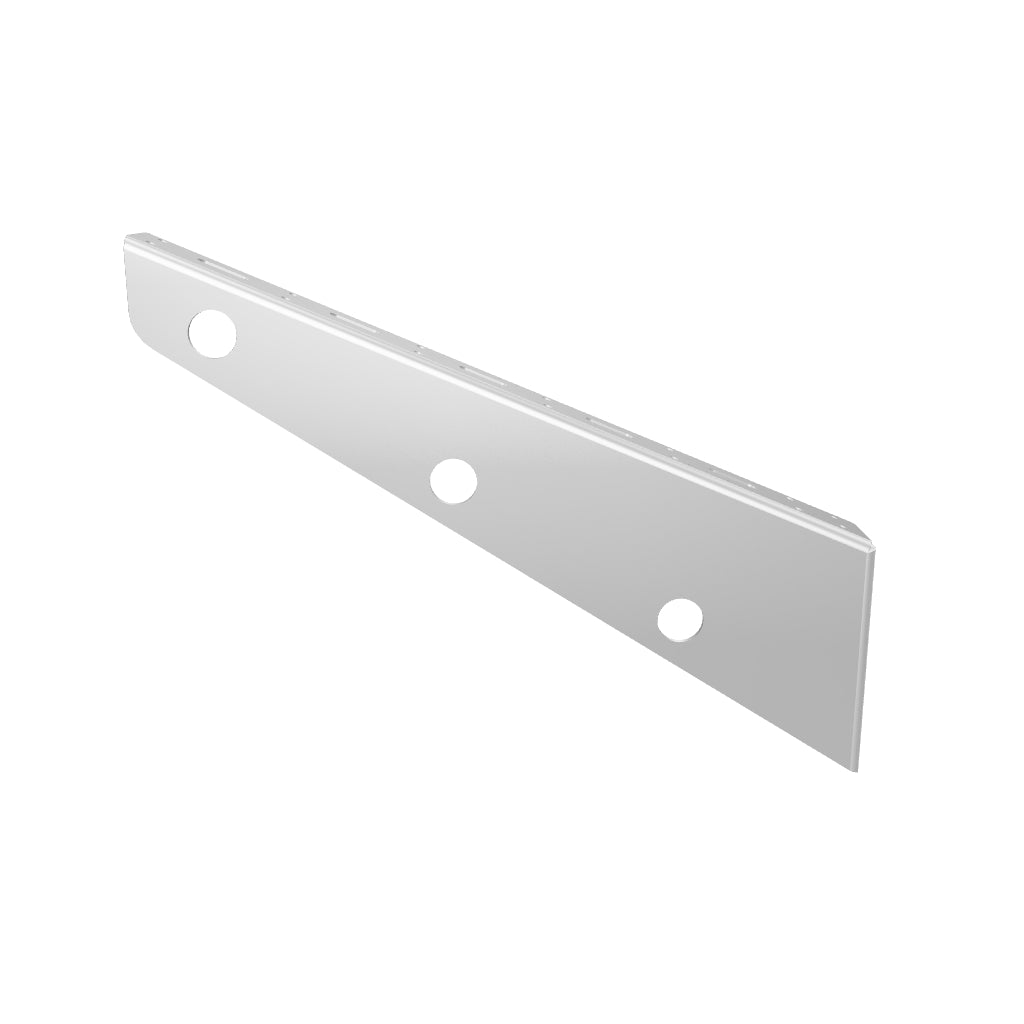

1 x 20" Left Pipe Rack Bracket
1 x 20" Right Pipe Rack Bracket

HARDWARE:

4 × Spring Nuts (3/8")
2 × Set Screws (3/8" - 16, 2 1/4")
2 × Hex Nuts (Flange – 3/8 - 16)
2 × Flange Head Bolts (3/8" - 16 x 1 1/4")

---

24" CSM Pipe Rack – 2 Pack

COMPONENTS:

1 x 24" Left Pipe Rack Bracket
1 x 24" Right Pipe Rack Bracket

HARDWARE:

4 × Spring Nuts (3/8")
2 × Set Screws (3/8" - 16, 2 1/4")
2 × Hex Nuts (Flange – 3/8 - 16)
2 × Flange Head Bolts (3/8" - 16 x 1 1/4")

STRUT CHANNELS NOT INCLUDED

Included hardware

• Sold as a 2-pack (left and right bracket set)

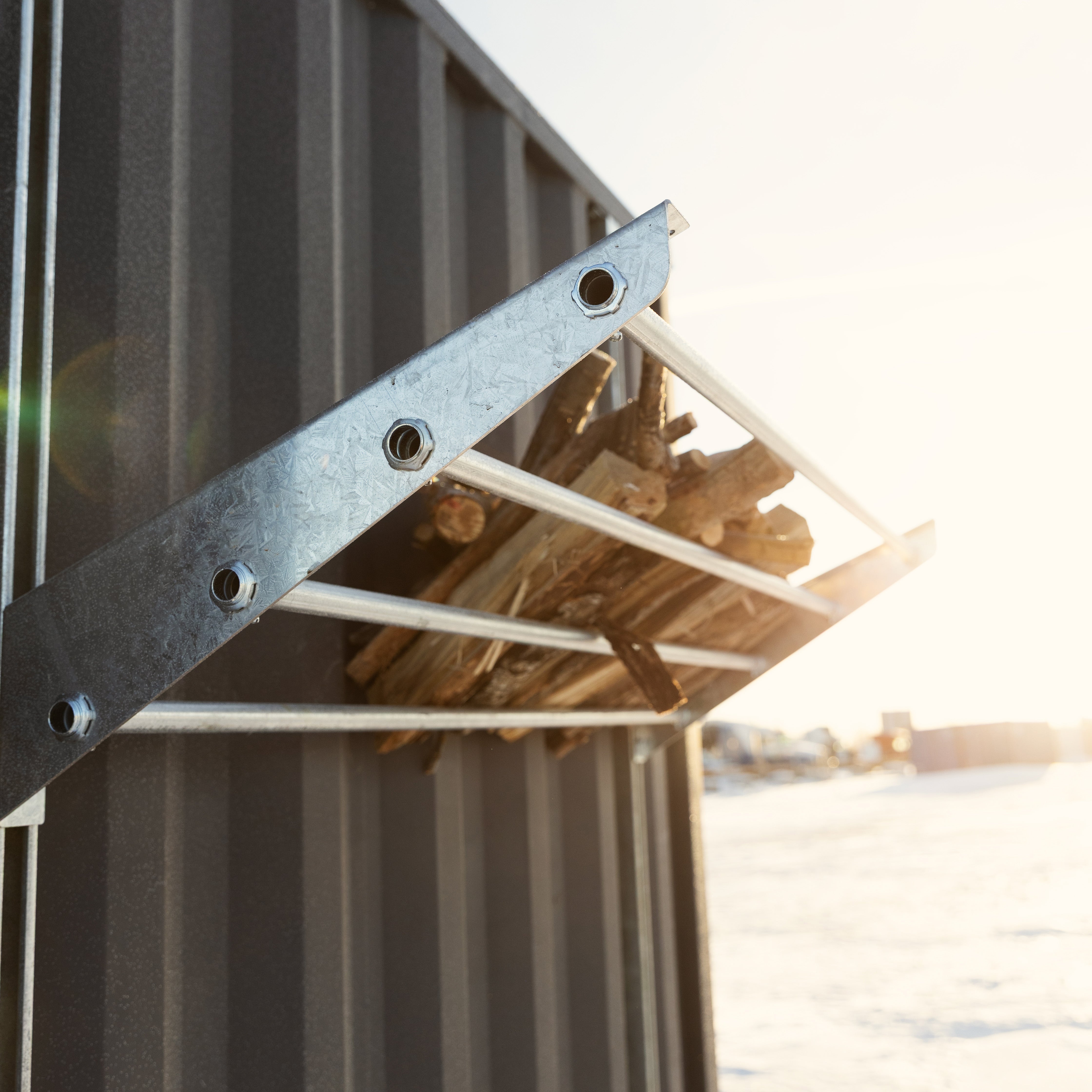

• Each rack fastens securely to CSM struts using 3/8" bolts and spring nuts, allowing full vertical adjustability anywhere along your installed strut channel.



Photo gallery

Installation instructions

1. Install CSM Brackets or MSS Brackets and struts inside or outside of your container.

2. Secure the pipe rack brackets to the struts using the included 3/8" hardware.

3. Adjust the rack to your desired height along the strut channel.

4. Add additional bracket sets to increase overall storage capacity.

Minimum of two brackets required per storage run.
