Description

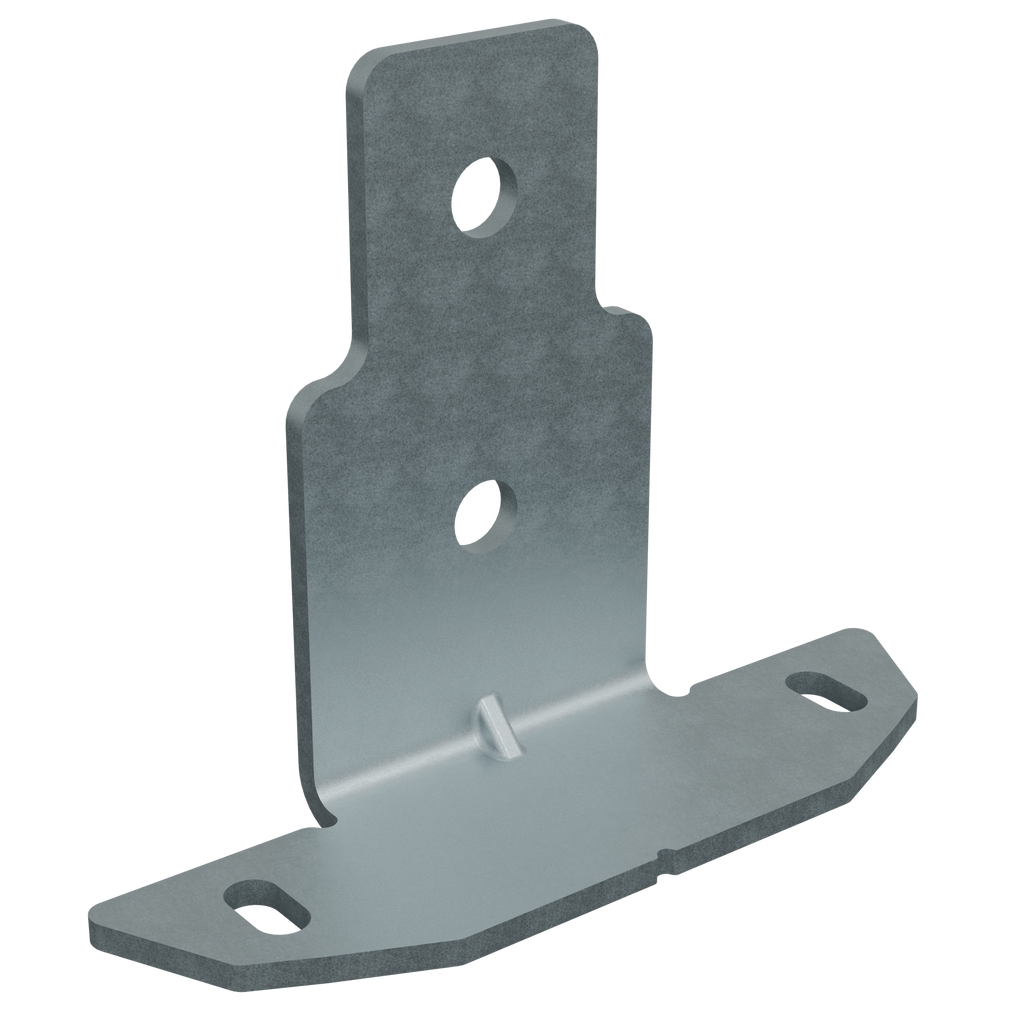

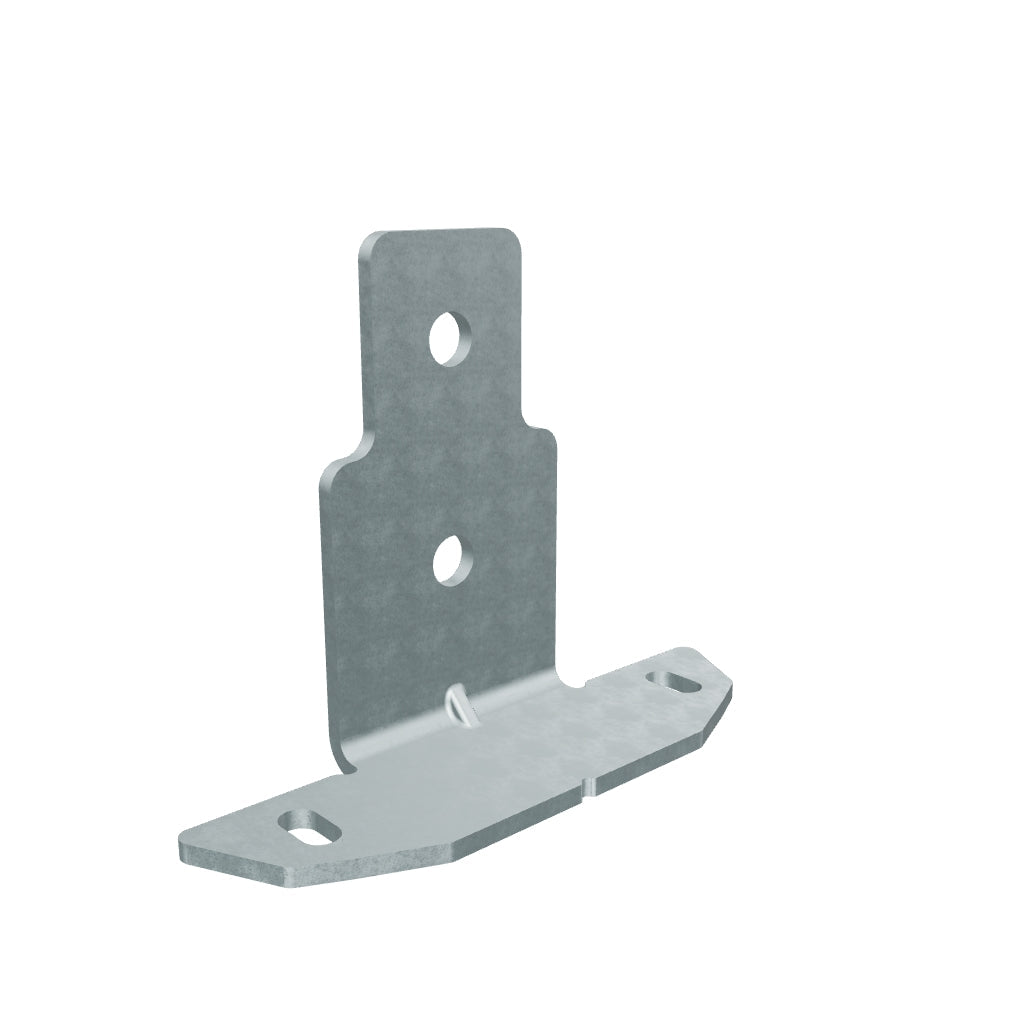

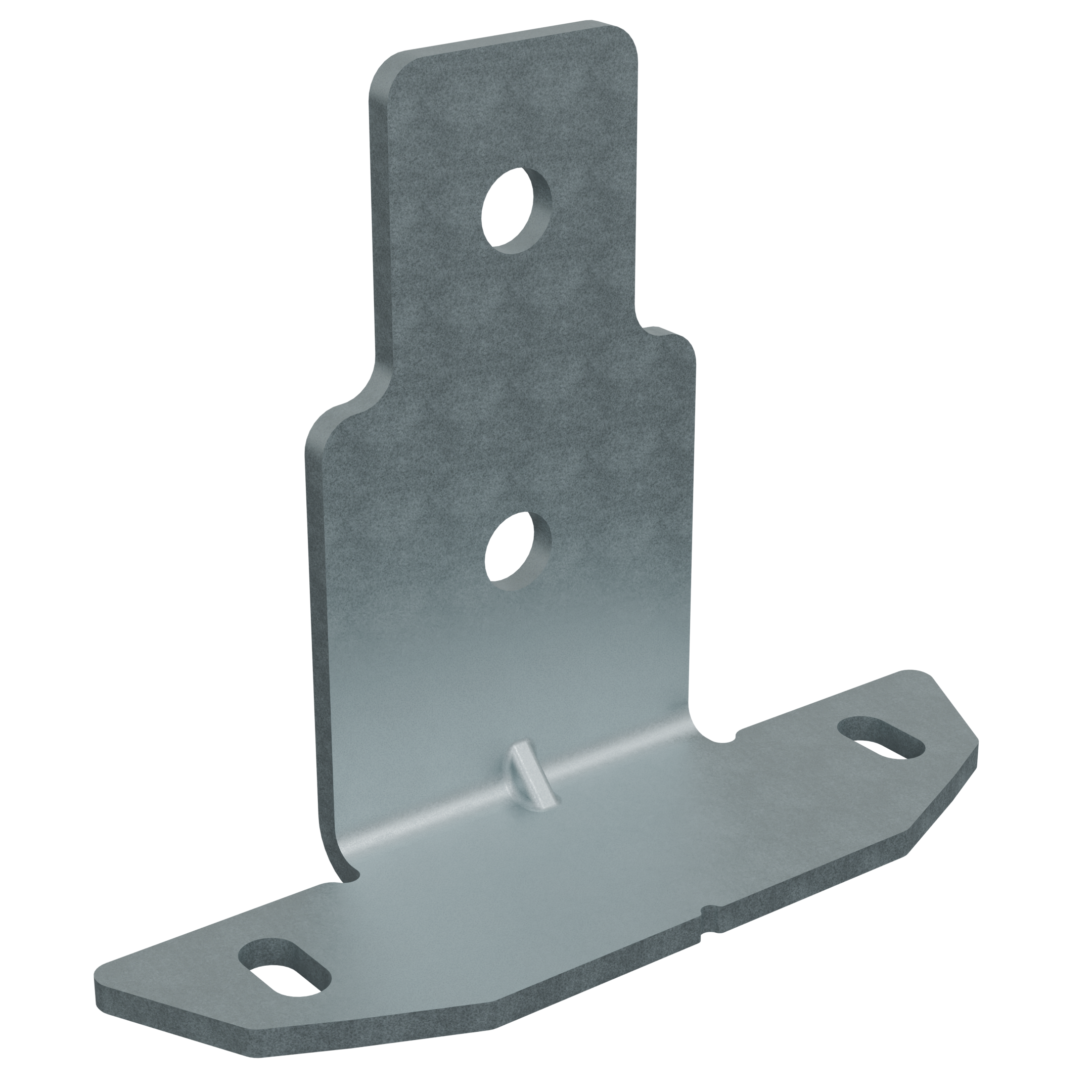

MSS™ - Strut Mount Bracket - MSS Exterior
No More Driving Screws Through Container Walls - No More Welding!
Self-tapping screws or bolts protruding from the exterior are a safety hazard and will render your container unshippable.
Modular Strut Systems (MSS™):
- Container Strut Brackets allow for hassle-free mounting of strut channels inside and outside any shipping container with ISO 9910 corrugations.
- Ideal for installing shelving and electrical panels in shipping containers
- Provides strut framing without welding
- Solves the safety hazard issue of screws poking through the exterior wall
- Designed to fit both sidewall and end wall corrugations
The MSS™ Exterior
● 10-Gauge Galvanized Steel

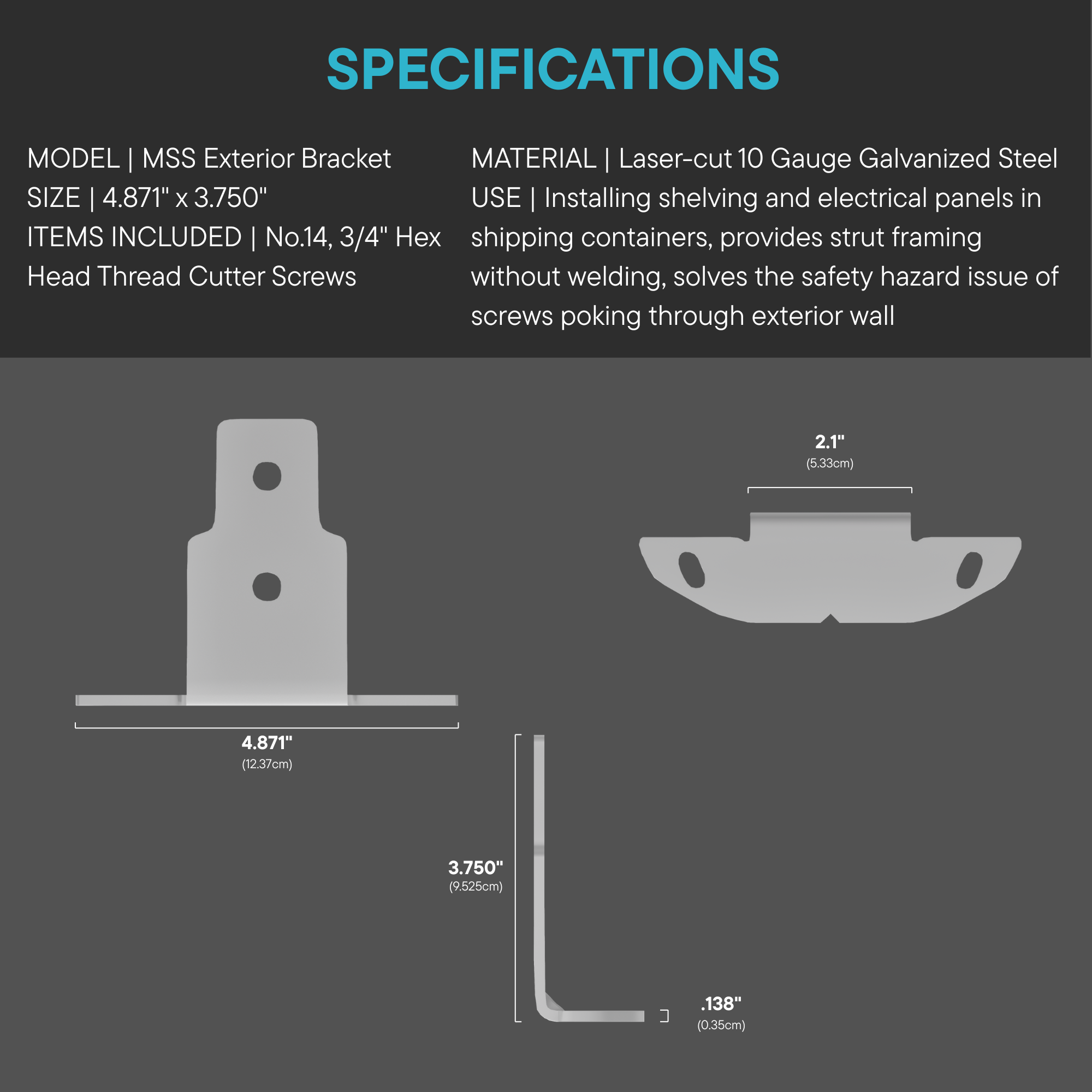

Specifications
- Made with 10-gauge galvanized steel
- Laser-cut galvanized steel
*IMPORTANT: Struts CAN NOT be installed once a container has been spray foam insulated.
MSS™ Bracket Product Line
The MSS™ family has 4 brackets to choose from:
The MSS™ Angle Bracket
● 10-Gauge Galvanized Steel
The MSS™ 1 Way Bracket
● 10-Gauge Galvanized Steel
The MSS™ 2 Way Bracket
● 10-Gauge Galvanized Steel
The MSS™ Exterior Bracket
● 10-Gauge Galvanized Steel
● Fastens into exterior corrugations to allow installation of strut channels on the exterior of the Shipping Container
Included hardware
- Designed to be used with 3/8" bolts, washers, and spring nuts
- Customers are to supply their own strut channel and associated 3/8" bolts, washers & spring nuts
- Comes with No.14, 3/4" Hex Head Thread Cutter Screws
Photo gallery
Installation instructions
